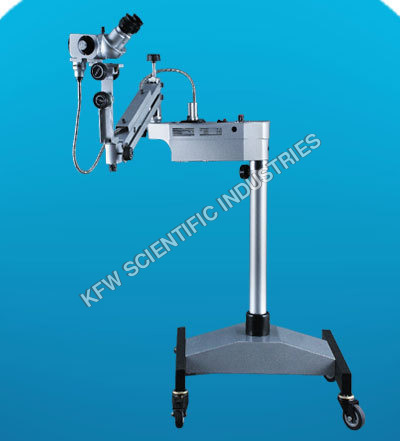

Colposcopes microscope

Get a Price/Quote

Colposcopes microscope Specification

Display
No integrated display

Frequency
50Hz

Finish Type
Powder Coated

Instruments Type
Surgical Instrument

Surface Finish
Smooth

Diameter
Objective lens: 50 mm

Disposable Or Reusable
Reusable

Instrument
Colposcope Microscope

Type
Optical Microscope

Material
Metal, Glass components

Condition
New

Portable
Yes

Rechargeable
No

Foldable
No

Waterproof
No

Use Type
Medical, Diagnostic

Operating Type
Manual

Power Source
Electric

Voltage
220V AC, 50Hz

Dimension (L*W*H)
Approx. 600mm x 400mm x 1200mm

Weight
Approx. 18kg

Type Of Equipment
Gynecology Diagnostic Equipment

Size
Standard

About Colposcopes microscope

Colposcopes microscope

Colposcopy is a medical procedure used in the detection of cervical cancer. A large microscope, or lens, is placed outside the vagina and focused on the cervix. This microscope is used to look for changes on the cervix that may signal the early signs of cervical cancer. The procedure of colposcopy is simple and relatively painless, although women may feel some pain if a biopsy needs to be performed. Some doctors may also perform a colposcopy using a digital camera or videocolposcope mode kfw I-30 V.

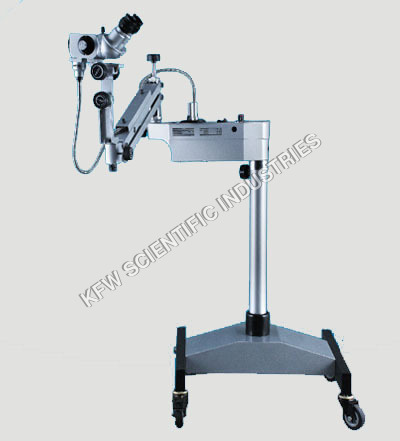

Colposcope 3 Step / 5 Step Magnification / Continous Zoom
KFW - Stepper / KFW - (I) Stepper / KFW - (Z)

Features

*	Objective Lens
*	Moveable Binocular Eye Pieces
*	Height is Adjustable
*	Fine Focusing
*	Tilting Arrangement

Magnifications

3 Step	5x, 10x, 20x - 3 step (VICS-30)
5 Step	0.5x, 7.5x, 12.5x, 20x, 30x- 5 step ( VICS-30(1))
Countinous Zoom	5x to 25x Continuous Zoom (VICS-30Z)

Specifications

Tilting Adjustment

30° Upward / 3° Downward

Working Range (Fine Focusing)

50mm

Lamp

15V / 150W
24V / 250W

Total All-Inclusive Weight

22 Kg

Filter

Red Free Green

Individual Components
*	Eye Piece	:	15x, 12.5x
*	Objective Lens	:	200mm 300mm 400mm
*	Field Of Vision	:	25 Kg
*	Ross Slide	:	50mm

Advanced Optical Performance

This colposcope is engineered with precision-ground glass optics and a wide field WF 10x eyepiece, delivering clear and detailed visualization necessary for cervical examinations. The manual magnification options3x, 5x, and 8xallow practitioners to easily adjust the view according to diagnostic needs.

User-Friendly Design for Efficient Diagnostics

Equipped with an ergonomically inclined 45 observation head and a sturdy mobile stand, this device enhances both comfort and flexibility. Adjustable light intensity, as well as coarse and fine focusing mechanisms, ensure optimal visibility and sharpness even during lengthy examination sessions.

Durable and Reliable Construction

Crafted from robust metal with a powder-coated finish and high-quality glass, the colposcope offers long-lasting performance. Designed for repeated use, it resists wear in busy medical environments. The mobile stands caster wheels provide portability, while standard electrical requirements guarantee hassle-free integration.

FAQs of Colposcopes microscope:

Q: How do I select the magnification level on the Colposcope Microscope?

A: To select the desired magnification (3x, 5x, or 8x), manually adjust the magnification turret or selector control provided on the microscope body before or during the examination. This feature allows clinicians to focus on areas of interest at varying detail levels.

Q: What procedures or processes require using this colposcope microscope?

A: This instrument is primarily used in gynecology for cervical examination, screening for abnormalities (including colposcopic-guided biopsies), and diagnostic visual assessment. The process typically involves positioning the instrument, adjusting the focus and light, then examining the cervical tissue through the inclined eyepiece.

Q: When and where should the Colposcope Microscope be used?

A: This device is ideal for use in medical clinics, hospitals, and specialized gynecology units whenever detailed visualization of cervical or vaginal tissue is needed for diagnostic purposes. It is suitable for use during routine screenings or when abnormalities are suspected.

Q: What are the benefits of using a colposcope with manual magnification and adjustable lighting?

A: Manual magnification selection lets clinicians switch between detailed close-ups and broader field views, enhancing diagnostic accuracy. Adjustable lighting ensures tissues are illuminated optimally, reducing glare and enabling clearer differentiation of structures.

Q: How do I maintain and clean the colposcope for repeated usage?

A: Wipe down metal and glass surfaces with a soft cloth and appropriate medical-grade disinfectant after each use. Store the device in a clean, dry area, and avoid exposing optical components to excessive dust or moisture to maintain clarity and longevity.

Q: Is the colposcope easy to move and set up within different areas of a clinic?

A: Yes, the instrument is designed with a mobile stand and lockable caster wheels for easy intra-facility transport. Its portable configuration allows clinicians to efficiently relocate and set up the device wherever exams are needed.

Q: What electrical and space requirements are needed to operate the Colposcope Microscope?

A: The colposcope operates on a standard 220V AC, 50Hz power supply and has dimensions of approximately 600mm x 400mm x 1200mm. Ensure adequate space near a power outlet and flat surface for stable operation.
