Surgical Microscope Cold Light

Get a Price/Quote

Surgical Microscope Cold Light Specification

Diameter
Light guide cable approx. 10 mm

Function
Provides cold light for enhanced surgical visibility

Surface Finish
Smooth Coated

Finish Type
Matte/Glossy

Disposable Or Reusable
Reusable

Instruments Type
Surgical Illumination Unit

Frequency
50Hz

Instrument
Microscope Cold Light

Type
Cold Light Source

Material
ABS Housing, Optical Glass

Condition
New

Technology
Halogen/LED Technology

Portable
Yes

Rechargeable
No (Powered by mains)

Foldable
No

Sterilized
No (External surface may be disinfected)

Waterproof
No

Use Type
Surgical

Usage
Illumination for microscopes during surgical procedures

Operating Type
Manual/Remote Switch

Power Source
Electric

Voltage
220V AC, 50Hz

Dimension (L*W*H)
Approx. 250 mm x 160 mm x 120 mm

Weight
Approx. 2.5 kg

Application
Ophthalmic, ENT, and General Surgeries

Features
High Intensity, Adjustable Brightness, Compact Design

Type Of Equipment
Surgical Illumination

Size
Standard

Control Options
On/Off and Brightness Control Switch

Mounting
Tabletop

Light Intensity
Up to 150,000 Lux

Packaging
Foam Protected, Rugged Cardboard Box

Compatibility
Suitable for most standard surgical and operating microscopes

Lamp Life
1000 hours (halogen), up to 20,000 hours (LED model)

Light Guide Length
180 cm

Safety Standards
CE Certified / ISO 13485 Compliant

Cooling System
Integrated Fan Cooling

Noise Level
< 40 dB

Color Temperature
> 5600 K (Daylight White)

About Surgical Microscope Cold Light

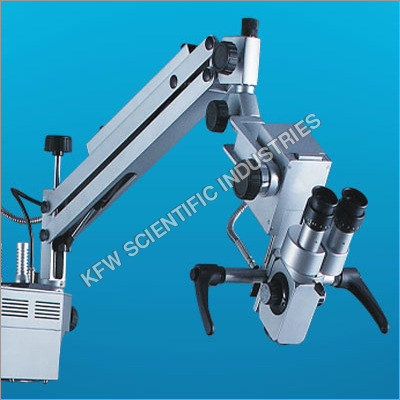

Surgical Microscope Cold Light (KFW-06 E)
Surgical Microscope Cold Light Surgical Microscope Cold Light

Specifications - Microscope Section
*	Binocular Tube	:	90 ENT & General Surgery
*	Eyepiece	:	12.5x/ 10x/ 16mm Dipptric Adjustment
*	Magnification Changes	:	Built In Manual 3-Step Changer
*	Total Magnification	:	7.5x, 12.5x, 20x 1:3
*	Field Of View	:	37.8mm, 23.5mm, 14.5mm
*	Objective Lens	:	F = 200, 250, 300, 400mm (For General Micro-Surgical Fields)
*	Working Distance	:	200mm
*	Interpupillary Distance Adjustment	:	55 mm to 75 mm

Surgical Microscope Cold Light Surgical Microscope Cold Light Surgical Microscope Cold Light Surgical Microscope Cold Light

Illumination Section
*	Type	:	By Optical Light Guide System
*	Light Source	:	15V/150 Watts Halogen Lamp
*	Illumination Control	:	Continuous Adjustment
*	Field Of Illumination	:	70mm
*	Filter	:	Cobalt Blue, Red Free, Heat Absorbing Filter

Surgical Microscope Cold Light Surgical Microscope Cold Light

Stand Section
*	Type	:	Floor Stand
*	Vertical Range Of Counterbalanced Arm	:	400 mm

Surgical Microscope Cold Light Surgical Microscope Cold Light Surgical Microscope Cold Light Surgical Microscope Cold Light

Superior Surgical Illumination

Achieve optimal visibility during surgery with luminous output up to 150,000 Lux and daylight-white color temperature (>5600 K). The advanced cooling system ensures quiet operation and lamp longevity, while the optical glass and durable ABS housing guarantee reliable performance in clinical environments.

Designed for Compatibility and Convenience

This cold light source fits most standard surgical and operating microscopes and comes with a 180 cm flexible light guide. Easy-to-use controls and compact, tabletop design offer convenience and adaptability in various surgical settings.

Safety and Certification Standards

Engineered for safety, this illumination unit meets CE certification and ISO 13485 compliance. Rugged packaging and smooth surface coatings ensure hygienic handling and easy integration into surgical workflows.

FAQ's of Surgical Microscope Cold Light:

Q: How do I operate the brightness control on the Surgical Microscope Cold Light?

A: You can adjust the light intensity easily using the built-in brightness control switch. This allows precise customization of illumination for different surgical needs.

Q: What are the main benefits of using a cold light source during surgery?

A: A cold light source provides bright, focused illumination without generating excessive heat, ensuring clear visibility while protecting delicate tissues and optics from heat damage.

Q: When should I consider replacing the lamp in my cold light source?

A: For halogen models, the lamp typically lasts around 1000 hours, while the LED version offers up to 20,000 hours of use. Replace the lamp if you notice diminished brightness or after reaching its rated lifespan.

Q: Where can this cold light unit be used effectively?

A: This unit is suitable for ophthalmic, ENT, and general surgeries in hospitals, clinics, or operating rooms, wherever precise, high-intensity microscope illumination is required.

Q: What is the recommended process for cleaning and disinfecting the cold light's external surface?

A: The cold light source is not sterilized but its smooth, coated external surfaces can be disinfected with standard, non-corrosive medical wipes to maintain hygiene.

Q: Is the cold light source compatible with all microscope models?

A: This illumination unit is designed for compatibility with most standard surgical and operating microscopes, thanks to its standard light guide size and universal mounting design.

Q: What are the advantages of choosing the LED model over the halogen version?

A: The LED model provides a longer lamp life (up to 20,000 hours), maintains consistent brightness, and usually generates less heat, resulting in lower maintenance and operating costs over time.
