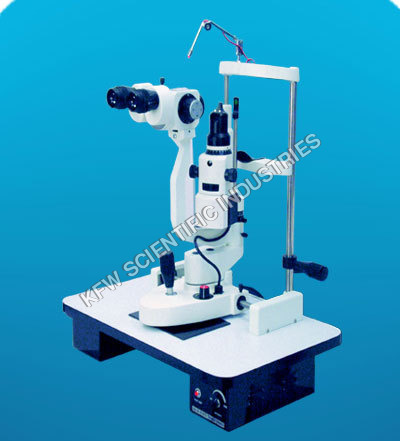

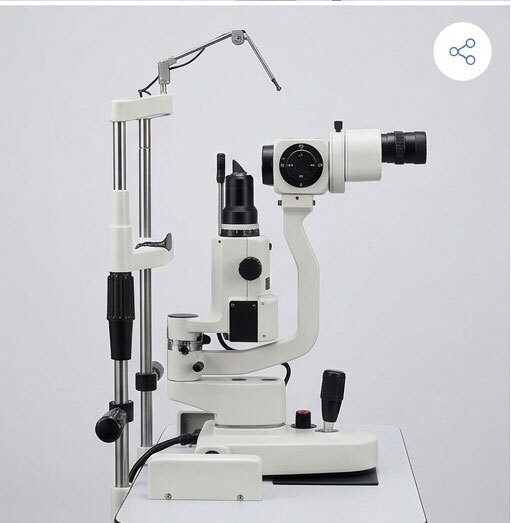

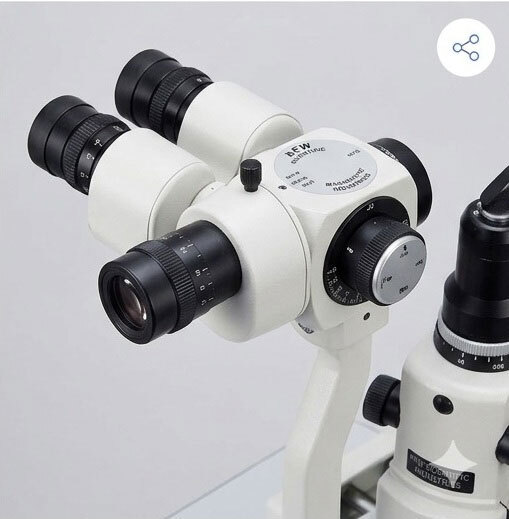

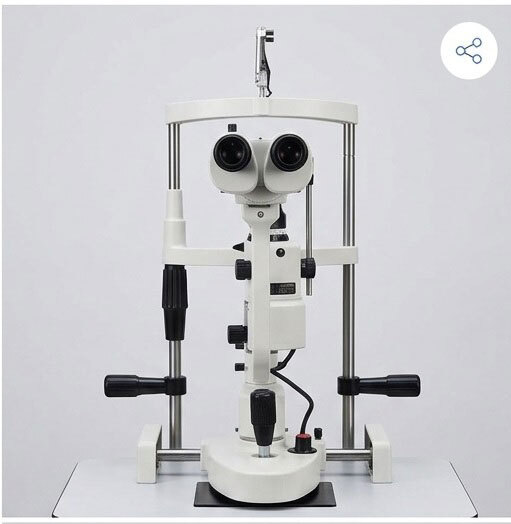

Slit Lamp Z Stepper

Get a Price/Quote

Slit Lamp Z Stepper Specification

Finish Type
Satin / Polished

Function
Vertical adjustment of slit lamp

Disposable Or Reusable
Reusable

Diameter
Fits standard base (approx. 8 cm) Centimeter (cm)

Surface Finish
Smooth Anodized Coating with Satin / Polished Accents

Instruments Type
Ophthalmic Instruments

Equipment Type
Z Stepper for Slit Lamp Microscope

Instrument
Slit Lamp Z Stepper

Type
Ophthalmic Equipment

Material
Aluminum Alloy & Stainless Steel

Condition
New

Technology
Other

Portable
No

Rechargeable
No

Foldable
No

Sterilized
Yes

Waterproof
No

Use Type
Clinical / Hospital Use

Usage
Precise vertical movement of slit lamp

Power Source
Manual

Dimension (L*W*H)
(approx)19 x 8 x 6 Centimeter (cm)

Weight
Approx. 350 Grams (g)

Features
Corrosion Resistant, High Precision, Durable

Maintenance
Low, easy to clean

Diagnostic Filters Built-in
Cobalt Blue, Red-Free (Green), Heat-Absorbing Modules

Instrument Properties
Reusable, Non-Portable, Non-Rechargeable, Fixed Mechanical Frame

Slit Rotation Sweep
0 Degree C to 180 Degree C continuous positionin

Net Weight
Approx. 350 Grams (g

Sterilization Compatibility
Yes (Compatible with standard surface disinfection and sanitation protocols)

Color
Metallic Silver / Grey

Manufactured By
OEM/ODM Available

Operational Environment
Clinical Consultation Rooms, Ophthalmic Diagnostics, and Hospitals

Manufacturing Structure
OEM / ODM Support Available

Host System Base Weight
Accommodates heavy-duty systems up to 25.0 Kg

Slit Apertures & Controls
0.2, 5, 8, 10, 12 mm & Infinitely Variable Wedge Diaphragm (0-14 mm continuous)

Movement Precision
Micrometer grade precision

Material Composition
remium Aluminum Alloy & Stainless Steel Base Components

Adjustment Handle Type
Knurled textured grip for slip-resistant manual rotation

Microscope Architecture
Galilean Type Host Systems

Handle Type
Knurled grip for easy rotation

Dioptric Correction Range
+/- 6 D

Interpupillary Distance (IPD)
Adjustable range between 48.5 mm and 80.0 mm

Standard Eyepiece Package
Wide Field 12.5X (Supports alternative 15X options

Mounting Compatibility
Universal for most slit lamp bases

Optical Magnification Steps
3-Step Rotating Barrel (10X, 16X, 25X)

About Slit Lamp Z Stepper

Technical Specifications

Microscope Type: Galilean
Magnification: 3-Step Rotating System 10X, 16X, 25X
Eyepiece: Wide Field 12.5X
IPD Range: 48.5 - 80 mm
Dioptric Adjustment: -/+ 6D
Slit Length/Width: 0 - 14 mm
Slit Apertures: 0.2, 5, 8, 10, 12 mm & Wedge-Shaped Diaphragm with Infinitely Variable Slit Lengths
Slit Rotation: 0°C -180°C
Filters: Red-Free, Cobalt Blue, Heat Absorbing

Movement & Illumination

Illumination Source: 6V, 20W Halogen Lamp
Input Voltage: Universal AC 110V to 240V, 50/60 Hz (CE Certified)
Weight: 25 kg

Standard Accessories

15 Eyepieces
Plastic Breath Shield
Dust Cover & Fuse
Testing Rod

Unmatched Precision and Reliability

Delivering outstanding micrometer-grade accuracy, the Slit Lamp Z Stepper ensures seamless vertical adjustment for slit lamp bases. Its mechanical stepper mechanism makes fine-tuned movements effortless, providing ophthalmologists with reliable positioning during every diagnostic procedure. Engineered with high-quality materials, the device combines durability with low-maintenance operation in busy clinical environments.

Universal Compatibility and Effortless Operation

Designed for maximum flexibility, this Z stepper is universally compatible with most slit lamp bases, supporting standard diameters up to approximately 8 cm. The knurled grip enables easy manual rotation, offering smooth, controlled adjustments. Its robust construction and corrosion-resistant finish make it ideal for regular hospital or clinical use.

FAQs of slit lamp z stepper :

Q: How do I install the slit lamp Z stepper onto my existing slit lamp base?

A: The Z stepper features a universal mounting design, making it compatible with most standard slit lamp bases (approximately 8 cm diameter). Simply align the stepper with the base, secure it according to your devices mounting points, and ensure smooth vertical movement before use.

Q: What benefits does the micrometer-grade precision provide during ophthalmic diagnostics?

A: Micrometer-grade precision enables extraordinarily fine vertical adjustments, which is crucial for focusing the slit lamp accurately during detailed eye examinations. This prevents misalignment, optimizes diagnostic clarity, and enhances workflow efficiency for clinicians.

Q: When should the Z stepper be cleaned, and what is the recommended process?

A: It is advisable to clean the Z stepper regularly, especially after each use or patient session. Use a soft cloth moistened with a gentle, non-corrosive disinfectant. Ensure all surfaces are dry before the next use. Its anodized, smooth surface allows for quick and easy cleaning.

Q: Where can the slit lamp Z stepper be utilized?

A: This Z stepper is engineered for use in clinical and hospital settings where ophthalmic diagnostics are performed. Its robust design and reliable performance make it an essential tool for eye care professionals in various medical facilities.

Q: What are the primary usage instructions for the Z stepper?

A: To adjust the vertical position of the slit lamp, manually rotate the knurled handle to achieve the desired height. The mechanical stepper system ensures stable and controlled movement, allowing for precise instrument positioning during examinations.

Q: How does the corrosion-resistant finish enhance the lifespan of the Z stepper?

A: The satin or polished, anodized finish protects the stepper from rust and corrosion, even in high-humidity or frequently sterilized environments. This ensures long-lasting performance and maintains a professional appearance over time.
