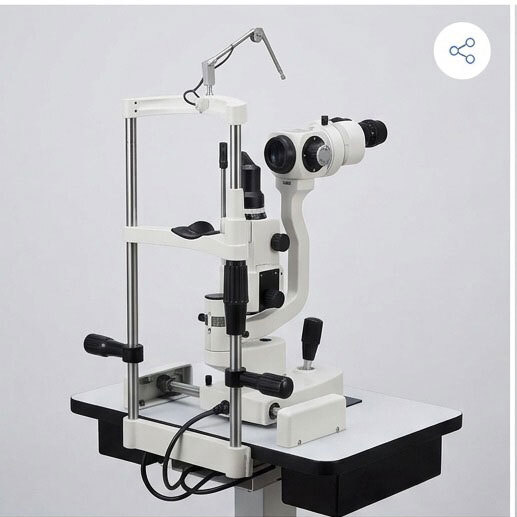

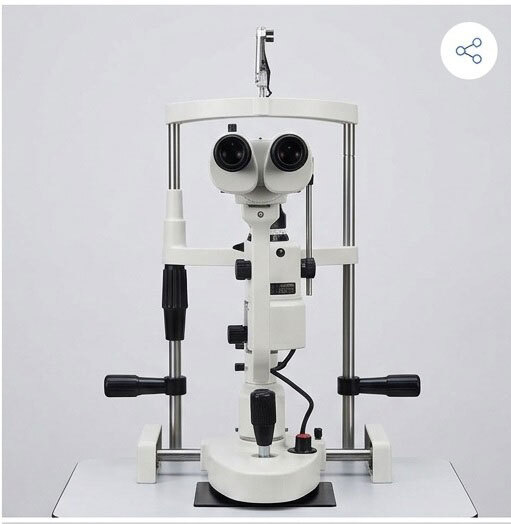

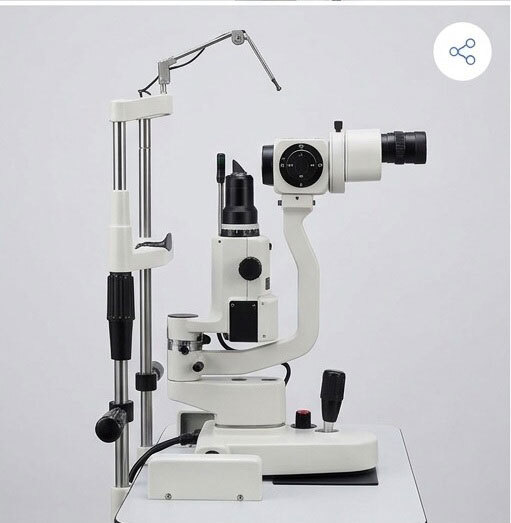

Slit lamps 3 Steps

Get a Price/Quote

Slit lamps 3 Steps Specification

Finish Type
Powder Coated

Surface Finish
Matte

Disposable Or Reusable
Reusable

Instruments Type
Diagnostic Ophthalmic Equipment

Instrument
Slit Lamp

Type
3 Step Magnification

Condition
New

Technology
Other

Portable
No

Rechargeable
No

Foldable
No

Sterilized
No

Waterproof
No

Usage
Eye Diagnosis

Operating Type
Manual

Power Source
Electric

Type Of Equipment
Slit Lamp Microscope

Eyepiece Configurations
10x / 16x Widefield (Standard Package includes Wide Field 12.5x

Eyepiece
10x/16x widefield

Magnification Steps
3 steps (10x, 16x, 25x)

Physical Weight
25.0 Kg (Net Base Assembly weight

Illumination Source
High-Intensity White LED (Up to 50,000 Hours life) / 6V 20W Halogen alternative support

Interpupillary Distance (IPD) Range
48.5 mm 80.0 mm

Build Quality & Form Factor
Stationary, non-portable unit; Heavy-duty structure with an elegant Powder- Coated Matte Finish

Magnification Changer
3-Step Rotation (10x, 16x, and 25x

Illumination Source
LED (White Light)

Bulb Life
Up to 50,000 hours (LED)

Microscope Optical Design
Galilean Type

Slit Rotation Angle
0 to 180 continuous

Power Configuration
Universal AC Input: 110V 240V (50/60 Hz) | Consumption: 40W | CE Certified

Joystick Control
Integrated fine movement control

Filters
Cobalt Blue, Red Free (Green), Heat Absorbing, Neutral Density

Slit Apertures
0.2, 5, 8, 10, 12 mm, and infinitely variable wedge-shaped diaphragm

Dioptric Adjustment
6 D

Power Consumption
40W

Patient Chin Rest Adjustment
70 mm travel

Built-in Optical Filters
Cobalt Blue, Red-Free (Green), Heat-Absorbing, Neutral Density

Slit Width / Length
Continuously variable from 0 mm to 14 mm

Mechanical Adjustments
Integrated feather-touch XYZ joystick; Patient Chin Rest travel up to 70 mm

About Slit lamps 3 Steps

Slit Lamp Z Stepper Magnification is consisting of a high intensity light source that can be focused to shine as a slit. It is used in conjunction with a bimicroscope. The lamp facilitates an examination which looks at anterior segment, or frontal structures and posterior segment, of the human eye, which includes the eyelid, sclera, conjunctiva, iris, natural crystalline lens, and cornea.

Features

Ergonomic Design
Enhanced Optical System For Superb Image Quality
Feather - Touch XYZ Joystick
3 Step Magnichanger
Video Compatibility

Specifications

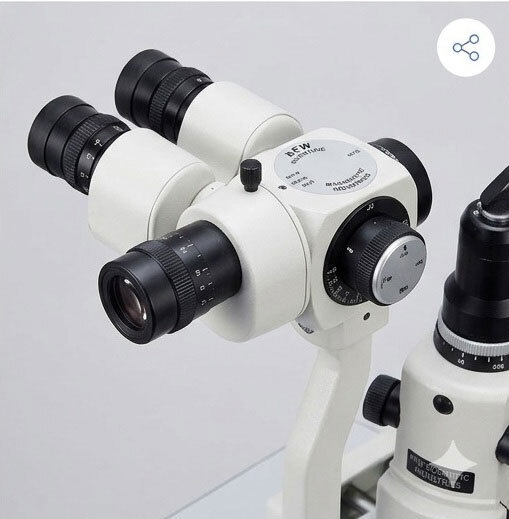

Microscope : Galilean
Magnification : 3 Step Rotation; 10X, 16X, 25X
Eyepiece : Wide Field 12.5X
IPD Range : 48.5 - 80mm, Dioptric Adjustment +/-6
Slit Length/Width : 0-14 mm
Sllit Apertures : 0.2, 5, 8, 10, 12mm and Wedge Shaped Diaphragm Of Infinitely Variable Slit Lengths
Slit Rotation : 0-180 deg
Filters : Red Free, Cobalt Blue, Heat Absorbing

Movement Ranges

Illumination : 6 V 20 W Halogen
Voltage : Universal Ac Input 110V -240V (50/60 HZ), CE
Weight : 25 Kg

Standard Accessories

15 Eye Pieces Plastic Breath Shield
Dust Cover and Fuse Testing Rod

Optional Accessories

CCD Camera
Beam Spliter With CCD Camera Attachment
Power Table / Mechanical Table

Optional accessories are listed as separate items in "Accessories" section under products, there brought separately.

Precision in Eye Diagnostics

The 3-Step Slit Lamp Microscope offers tailored magnification (10x, 16x, and 25x) and multiple filter options, allowing eye care professionals to conduct thorough examinations and detect subtle abnormalities. It is a reliable choice for clinics and hospitals seeking consistent results in ophthalmology diagnostics.

Durable and Efficient Design

Engineered for longevity, the device utilizes an LED illumination source featuring up to 50,000 hours of bulb life and low power consumption. The powder-coated matte finish and sturdy structure ensure the slit lamp withstands daily, intensive clinical use while maintaining visual clarity.

User-Friendly Operation

Equipped with an integrated joystick for precise instrument movement and an adjustable patient chin rest, the slit lamp ensures comfort and ease of use for both operator and patient. Its widefield eyepiece and essential filters enhance versatility in eye examinations.

FAQs of Slit lamps 3 Steps:

Q: How do I adjust the magnification on the 3-Step Slit Lamp?

A: You can easily switch between 10x, 16x, and 25x magnification by rotating the selection knob. This flexibility allows for optimal viewing based on the specific diagnostic requirements during an eye examination.

Q: What types of filters are included with this slit lamp and what are their benefits?

A: The lamp includes Cobalt Blue, Red Free (Green), Heat Absorbing, and Neutral Density filters. These allow detailed view of corneal staining, better visualization of retinal blood vessels, reduced heat to the eye, and customizable light intensity respectively.

Q: Where is the 3-Step Slit Lamp most commonly used?

A: This instrument is primarily used in ophthalmology clinics and hospitals for eye diagnostics. Its robust design and easy controls make it a reliable choice for medical professionals in busy clinical settings.

Q: What is the process for adjusting the patient chin rest?

A: The patient chin rest offers a 70 mm travel adjustment, which you can fine-tune using the adjustment knob to ensure the patient is optimally positioned for examination.

Q: What advantages does the LED illumination offer compared to traditional bulbs?

A: LED illumination provides bright, consistent white light while generating minimal heat and consuming only about 40W. This means longer bulb life (up to 50,000 hours) and minimal maintenance requirements.

Q: Is this slit lamp portable or rechargeable?

A: No, the slit lamp is designed as a stationary instrument for clinical use. It is not portable, rechargeable, or foldable, and must be plugged into an electric power source.
