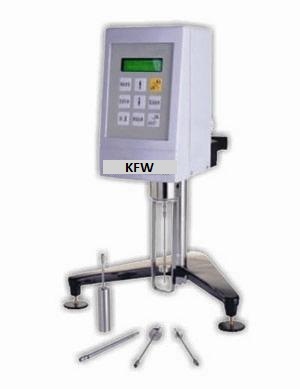

Microprocessor Viscometer

Get a Price/Quote

Microprocessor Viscometer Specification

Capacity
10ml to 1000ml

Feature
Automated measurement, easy calibration

Accuracy
1% FS

Frequency
50/60 Hz

Temperature Range
0C to 60C

Model No
MPV-2024

Voltage
230V AC

Automation Grade
Automatic

Power Source
Electric

Measurement Range
2 mPa.s ~ 2,000,000 mPa.s

Core Components
Microprocessor controller, display unit, sensor head

Equipment Materials
Stainless Steel & ABS Body

Type
Microprocessor Viscometer

Usage
Viscosity measurement for laboratory and industrial applications

Display Type
Digital LCD Display

Dimension (L*W*H)
350mm x 280mm x 450mm

Weight
Net Weight: 5 kg

Software Support
Compatible with Windows

Compliance
ISO, ASTM, CE Certified

Time Setting
Programmable, up to 999 sec

Protection
Overload & Overheat Protection

Sample Holder
Detachable

Calibration
Automatic single-point

Operating Temperature
Ambient to 70C

Colour
White & Blue

Display Resolution
0.01 mPas

Ambient Humidity
85%

Screen Size
4-inch LCD panel

Data Output
USB & RS232 interface

Speed Range
10 to 250 rpm

Viscometer Spindle
Standard set included (L1-L4)

About Microprocessor Viscometer

Microprocessor Viscometer has the advantage of high accuracy, stable digital display, easy to operate and good antiinterference. It is widely used in the measurement of viscosity of various kinds of fluids such as grease, paints, food, medicine, adhesive and cosmetic etc., it can also be used to determine the viscosity resistance and absolute viscosity of the liquids.

Feature:

Its with led display.
Measurement range is 10-1 x 105 mpa.s with 4 spindles, 6/12/30/60 rotor speed (rpm), + 5 % newtonian fluid.
Provided with RS232c interface.

Precision Measurement Made Effortless

Achieve unparalleled accuracy in viscosity testing with the MPV-2024 Microprocessor Viscometer. The automatic calibration process and a digital LCD readout provide consistent, reliable results with a fine 0.01 mPas resolution. Designed for ease of use, the device is suitable for various standard laboratory and industrial applications, making it the go-to instrument for a wide measurement range of 2 mPa.s to 2,000,000 mPa.s.

Versatile and Robust Design for Multiple Applications

Crafted with a stainless steel and ABS body, the viscometer is built to withstand rigorous use while maintaining performance. The detachable sample holder, wide capacity range, and standard L1-L4 spindle set support a broad array of viscosity measurements. Overload and overheat protection ensures safety and longevity, whereas the programmable timer offers full control over measurement cycles.

User-Friendly Operation and Data Management

Equipped with USB and RS232 data outputs, seamless integration into laboratory data systems is straightforward. Software compatibility with Windows further enhances data management and analysis, while the 4-inch digital LCD panel allows for clear, at-a-glance monitoring. Its compliance with ISO, ASTM, and CE standards guarantees quality and reliability in every test.

FAQs of Microprocessor Viscometer:

Q: How does the automatic calibration feature of the MPV-2024 improve the measurement process?

A: The MPV-2024s automatic single-point calibration ensures that the device is consistently set to precise standards, reducing manual effort and user error. This enables quick and reliable calibration before measurements, resulting in more accurate and repeatable viscosity readings.

Q: What types of samples and volumes are suitable for this viscometer?

A: This viscometer accommodates a variety of fluids with viscosities ranging from 2 mPa.s to 2,000,000 mPa.s. Its sample holder can handle volumes from 10ml to 1000ml, making it ideal for laboratory testing or industrial quality control with different sample sizes.

Q: When should I use the programmable time setting?

A: The programmable timer, adjustable up to 999 seconds, is particularly beneficial when precise timing of measurements is required. Use it when you need to standardize test durations or ensure consistency in repeated tests over various samples.

Q: Where can the Microprocessor Viscometer MPV-2024 be utilized effectively?

A: This instrument is designed for both laboratory and industrial environments. Its robust build and protection features make it suitable for research labs, quality assurance departments, and manufacturing facilities across industries like food, pharmaceuticals, chemicals, and paints.

Q: What is the process for exporting data from the viscometer?

A: Data export is simple and flexible with both USB and RS232 interfaces. You can connect the viscometer conveniently to a computer or data management system, and the included software (compatible with Windows) facilitates easy retrieval and analysis of measurement data.

Q: How does the device ensure user safety and reliability during operation?

A: The MPV-2024 includes overload and overheat protection systems, which automatically safeguard the instrument and operator from extreme conditions. This reliability makes it a secure choice for regular, unattended, or automated operations.

Q: What are the key benefits of using the MPV-2024 for viscosity measurement?

A: Users benefit from high accuracy (1% FS), flexible measurement capacities, clear digital display, effortless calibration, and compliance with international standards (ISO, ASTM, CE). Its automated and programmable features save time, while robust construction ensures lasting performance.
