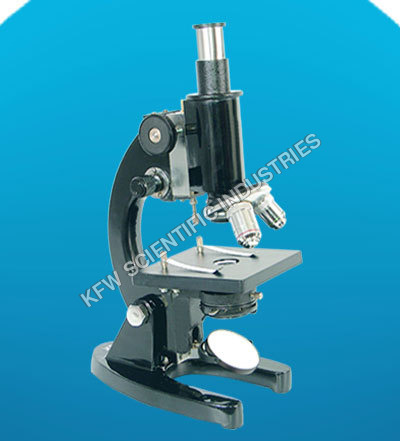

Monocular Microscope

Get a Price/Quote

Monocular Microscope Specification

Focus System
Coarse and fine coaxial adjustment knobs

Spare Parts
Supplied with spare bulb (if lamp model), fuse, and dust cover

View Head
Monocular, 45° inclined

Features
Compact, durable metal body, sturdy base, anti-fungal optics, 360° rotatable head

Theory
A precision optical instrument for viewing small or microscopic specimens using a monocular (single eyepiece) head.

Drawtube
Straight, 160mm length

Sensor
N/A (Optical Only)

Resolution
Depends on eyepiece and objective combination

Interface
Mechanical (no digital interface)

Frame Rate
N/A (no camera present)

Focal Distance
160mm (optical tube length)

Magnification
Up to 1000x (100x, 400x, 1000x standard with 10x eyepiece and 10x, 40x, 100x objectives)

Dimensions
Approx. 350mm (H) x 130mm (W) x 180mm (D)

Focus Range
Coarse and fine adjustments provided

Eyepieces
Wide field 10x (standard), 15x or 20x optional

Eyepiece Tube
Single (monocular), inclined at 45°

Illumination
Mirror (Plano-concave), with substage condenser

Coarse Adjustment Range
Approx. 15mm

Fine Adjustment Range
Approx. 0.2mm precision

Working Stage
Rectangular stage with slide clips

Image Format
N/A (visual observation only)

Interpupillary Distance
N/A (single eyepiece)

Objective Achromatic
Achromatic Objectives: 10x, 40x (SL), 100x (Oil Immersion)

Condenser
Sub-stage condenser, NA 1.25, with iris diaphragm

Light Source
Plano-concave mirror (natural light); lamp models available

Packing
Delivered in Styrofoam box or sturdy cardboard case

Color
White or grey enamel finish

Weight
Approx. 5-6 kg

Pillar
Sturdy broad pillar for stable support

Dust Protection
Supplied with protective dust cover

Nosepiece
Rotating turret type, 3 objectives mounting

Body Material
Die-cast metal for durability

Diaphragm
Iris diaphragm built into condenser

Finish
Chemical resistant and scratch-proof paint

Stage Movement
Manual, X-Y slide movement using stage clips

Base
Heavy, square stable base

Usage/Application
Schools, colleges, laboratories, and clinical purposes

Optical Correction
Parfocal and parcentered optical system

Monocular Microscope About

To meet the numerous demands of clients, we are committed to manufacture, export and supply an extensive range of Monocular Microscope. This microscope is specifically designed for performing researches and studies on microorganisms, cell structure, blood samples, tissue culture, etc. Manufactured utilizing quality checked raw material and latest technology, offered microscope is highly acknowledged for its durability and compact design. Additionally, clients can obtain this Monocular Microscope from us at a market leading rate.

Features:

Optimal performance
Efficient magnification
Maintenance free
Hassle-free functioning

Specifications:

Stand	:	Stable & Robust, Traditional Horse Shoe Base
Body	:	Inclined Through 90^o Standard Tube Length Of 160mm
Focusing	:	Separate Coarse and Fine Focusing knobs With Graduation on One Side. Coarse Movement By Rack & Pinion and Fine Movement by Screw Lever Mechanism
Nose Piece	:	Triple Revolving Nose piece is Provided With Positive Click Stop For Proper Centering Movement Of Specimens
Stage	:	Fixed Square Stage 125 X 125 mm With Stage Clips to Hold the Slide
Illumination	:	Illumination Through a 50 mm Diameter plano concave mirror mounted on gimbal mount.
Objectives	:	Two Achromatic Objectives Of 10X & 40X (SL)
Eye pieces	:	Two Huygenian Eyepiece Of 6X, 10X or 15X
Condenser	:	Sub Stage Abbe Condenser With N.A. 1.25 Moves Up and Down by Rack and Pinion. Iris Diaphragmand Filter Holder are Mounted with the Condenser.

Sturdy Construction and Finish

Built with die-cast metal body and a broad supporting pillar, this microscope delivers both stability and durability for frequent use. Its heavy square base further enhances steadiness during specimen examination, while the chemical-resistant and scratch-proof enamel coating in white or grey ensures long-lasting performance.

Optical System and Magnification

The precision parfocal and parcentered optical system helps maintain focus and alignment across objective changes. Users can achieve magnifications up to 1000x with achromatic objectives and wide-field eyepieces, giving clear and detailed views of minute specimens. Both coarse and fine adjustment knobs allow precise focusing.

Stage Movement and Usability

Manual X-Y stage movement is facilitated by slide clips atop the rectangular working stage. This straightforward setup makes it easy to position and observe slides accurately, ideal for academic, laboratory, and clinical environments. The instrument is simple to operate, ensuring accessibility for users at all levels.

FAQs of Monocular Microscope:

Q: How does the monocular microscopes manual stage movement function?

A: Manual X-Y stage movement is achieved using slide clips on the work stage, allowing users to accurately position and maneuver specimens for detailed observation.

Q: What are the benefits of the sturdy die-cast metal body and heavy base?

A: The die-cast metal construction combined with a broad pillar and heavy square base provides remarkable stability, minimizing vibrations and enhancing both safety and precision during use.

Q: When is this microscope most beneficial for use?

A: This microscope is ideal for educational institutions such as schools and colleges, as well as research laboratories and clinical settings where robust performance and ease of use are essential.

Q: Where can the microscope be effectively utilized?

A: It can be effectively employed in classrooms, laboratories, medical clinics, and research institutes, thanks to its versatile, compact design and reliable optical performance.

Q: What is the process for changing objectives on the microscope?

A: Switching objectives is straightforward: the rotating turret nosepiece allows users to conveniently select among three mounted achromatic objectives, thereby adjusting the magnification as required.

Q: How is the microscope protected from dust and environmental damage?

A: Each unit is supplied with a protective dust cover. In addition, its chemical-resistant, scratch-proof enamel finish acts as a shield against environmental wear.

Q: What features enhance the optical clarity and longevity of the microscope?

A: Anti-fungal optics, parfocal and parcentered systems, and achromatic objectives ensure sharp imaging and extended performance, even in humid or demanding laboratory conditions.
