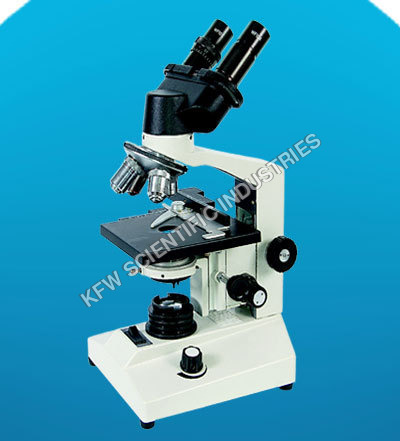

Binocular Microscopes

Get a Price/Quote

Binocular Microscopes Specification

Features
Rigid Metal Stand, Antifungal Optics

Focus System
Coaxial Coarse & Fine Focus

View Head
Binocular, 360 Rotatable

Spare Parts
Spare Bulb, Fuse, Dust Cover, Immersion Oil Bottle

Theory
Compound Optical System

Drawtube
Binocular, 360 Rotatable

Resolution
Dependent on Eyepiece & Objective (up to 1000X optical)

Interface
Manual Operation

Magnification
40X to 1000X (Standard Objective: 4X, 10X, 40X, 100X; Eyepiece: 10X)

Eyepieces
Wide Field 10X (Pair)

Eyepiece Tube
Binocular, 45 inclined

Illumination
Halogen Lamp, 6V/20W (with built-in transformer)

Coarse Adjustment Range
15mm

Fine Adjustment Range
0.2mm

Image Format
Visual Observation

Objective Achromatic
4x, 10x, 40x (spring), 100x (oil, spring)

Condenser
Abbe condenser N.A. 1.25 with iris diaphragm & filter holder

Light Source
Halogen Lamp, adjustable intensity

Optical Coating
Antifungal treated optics

Diopter Adjustment
Provided on left eyepiece tube

Usage
Biology, Educational, and Laboratory use

Body Material
Die-cast Aluminum Alloy

Carrier Handle
Integrated for ease of transport

Color
White or as per manufacturer standard

Power Supply
AC 220V/50Hz or AC 110V/60Hz

Stage Clips
Double, high-tension steel

Stage Movement
X-Y Adjustable, Graduated scale

Revolving Nosepiece
Quadruple ball bearing

About Binocular Microscopes

Being a reliable entity, we are instrumental in manufacturing, exporting and supplying a large variety of Binocular Microscopes. Available in divergent specifications, these microscopes are used in nano physics, medical diagnosis, microbiology, pharmaceutic research, etc. To ensure their superior performance, offered microscopes are manufactured with the use of advanced technology and quality assured components in accordance with set industry terms. Further, these Binocular Microscopes are provided at economical rates to the clients.

Features:

Coarse and fine focus
Easy to use
High resolution
Sturdy design

Specifications:

Eyepieces	Widefield WF10X/18mm Eyepiece
Objectives	Plan Objective
Objectives	Achromatic Objectives 10X, 40X(S), 100X(S, Oil)
Focusing	Coarse and Fine Focusing with separate knobs
Stage	Low position coaxial mechanical stage
Sub-Stage	Rack & Pinion focusable 1.25NA Condenser
Illumination	Halogen Illumination 6V/20W with intensity control
Packing	Packed in thermocol box

Robust Construction with User-Centric Design

The microscope boasts a durable die-cast aluminum alloy frame, offering both longevity and stability during use. Its ergonomic features, such as a comfortable carrier handle and a binocular 360 rotatable, 45 inclined view head, ensure ease of operation for a range of user requirements, making it suitable for both students and professionals.

Precision Imaging and Optical Performance

Equipped with wide-field 10X eyepieces and achromatic objectives, this microscope delivers high-resolution viewing up to 1000X magnification. The antifungal-treated optics and fine focus adjustments guarantee sharp and clear images, while the Abbe condenser with iris diaphragm enables refined light control for accurate observation.

Versatile and Reliable in Laboratory Settings

With its adjustable halogen lamp illumination and manual operation interface, the microscope adapts seamlessly to various applications in biology and education. Spare accessories such as bulbs, fuses, and immersion oil are included, ensuring consistent performance and straightforward maintenance over long-term laboratory use.

FAQ's of Binocular Microscopes:

Q: How do I adjust the stage movement and scale on this binocular microscope?

A: The mechanical stage of the microscope features X-Y adjustable movement with a graduated scale. You can precisely position your specimen slide using the low-position coaxial controls for smooth and accurate adjustments, facilitating detailed observations at varying magnifications.

Q: What measures are in place to preserve the clarity of the microscope optics over time?

A: The microscope's optical components are coated with an antifungal treatment, safeguarding against fungal growth and maintaining optical clarity. Regular cleaning and storage with the included dust cover further help to protect the optics for prolonged use.

Q: When should I use the oil immersion objective included with the microscope?

A: The 100x oil immersion achromatic objective is designed for observing specimens at the highest magnification (1000X). Apply a drop of immersion oil (provided) between the slide and the objective lens to achieve enhanced resolution and image clarity during high-magnification viewing.

Q: Where can this binocular microscope be used effectively?

A: Ideal for biology, educational, and laboratory environments, this microscope serves institutions, schools, and research laboratories. Its robust construction and versatile features make it reliable for both teaching and scientific investigation.

Q: What is the process for changing the bulbs or maintaining this microscope?

A: Replacement is simple: power off the device, allow it to cool, and change the halogen lamp bulb or fuse using the provided spares. Maintenance includes cleaning the optics, applying the dust cover when not in use, and using immersion oil when needed for high magnification.

Q: How does the manual operation interface benefit users of different experience levels?

A: Manual coaxial coarse and fine focus adjustments allow for nuanced control over specimen focusing. This tactile interface helps both beginners and experienced users achieve precision in observation, fostering hands-on learning and research skills.
