Research Microscopes

Get a Price/Quote

Research Microscopes Specification

Frequency
50 Hz

Disposable Or Reusable
Reusable

Instruments Type
Research

Surface Finish
Smooth, Powder Coated

Finish Type
Powder Coated

Display
Monocular or Binocular

Diameter
Objective Lens: 4x, 10x, 40x, 100x

Function
Microscopic Observation

Instrument
Research Microscope

Type
Optical Microscope

Material
Metal and Glass

Condition
New

Technology
Brightfield/Compound Optical

Portable
No

Rechargeable
No

Foldable
No

Sterilized
No

Waterproof
No

Use Type
Laboratory and Research

Usage
Biological and Academic Research

Operating Type
Manual

Power Source
Electric

Voltage
220V AC

Dimension (L*W*H)
420 x 180 x 220 mm (approx.)

Weight
5-7 kg

Application
Clinical, Research, and Laboratory Analysis

Features
High Resolution, Adjustable Focus, Light Control

Type Of Equipment
Microscope

Size
Standard

Nosepiece
Quadruple Ball Bearing Nosepiece

Objective Lenses
Achromatic (4X, 10X, 40X, 100X Oil Immersion)

Stage
Mechanical Stage with X-Y Movement

Head Type
Inclined/Rotatable Head (360)

Packaging
Box Packed with Accessories

Illumination
Built-in LED/ Halogen with Adjustable Intensity

Condenser
Abbe Condenser (NA 1.25), with diaphragm

Focusing System
Coarse and Fine Adjustment Knobs

Eyepiece Magnification
10X Wide Field

Color
White/Black

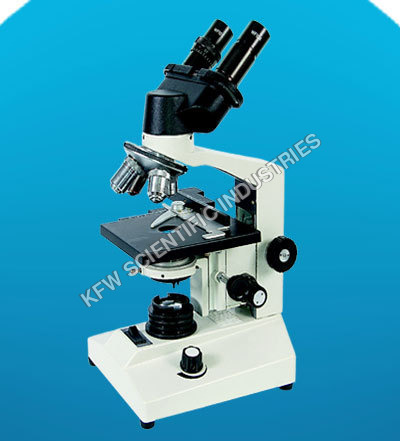

About Research Microscopes

Our firm is counted amongst noteworthy manufacturers, exporters and suppliers of a huge collection of Research Microscopes. Offered microscopes are designed and manufactured by inculcating latest technology using high quality components under the supervision of adept professionals. These microscopes find their main applications in clinical and research laboratories for viewing tissue culture, cell structure, microorganisms, etc. Furthermore, these Research Microscopes are available in divergent specifications as per the exact needs of the clients and at nominal prices.

Features:

High endurance
Dimensionally accurate
Coarse and fine focus
Corrosion resistant finish

Specifications:
*	Frame	:	All Aluminium Pressure Diecasted Body
*	Paint	:	Powder Coated, Available in Various Desired Shades
*	Nose Piece	:	Quadruple Ball Bearing Nose Piece
*	Observation Head	:	360A Rotate Able and 45A Inclined Head with All Anti-Fungus Coated Prisms
*	Focusing system	:	Separate knobs for Cores and Fine Motion Having Least Count Of .002 mm
*	Mechanical Stage	:	CXL Mechanical Stage Works On Dovetail Slides.(Other Stages Also Available).
*	Condenser	:	Two Huygenian Eyepiece Of 6X, 10X or 15X, 1.2 N.A
*	Eye pieces & Objectives	:	Set of 4X, 10X, 40X and 100X and a Paired Set Of 10X Wide Field Eyepieces.
*	Illumination	:	6V/20W halogen lamp needs 220V and 50Hz supply

Advanced Optical Precision for Research

Featuring a combination of 10X wide field eyepiece and quadruple achromatic objectives, this research microscope delivers sharp, distortion-free images for detailed biological and clinical analysis. The 100X oil immersion objective enhances specimen clarity at high magnification, meeting the rigorous demands of laboratory and academic environments.

User-Friendly Mechanical Stage and Focusing

The microscope includes a smooth mechanical stage with X-Y movement for accurate slide navigation. With both coarse and fine adjustment knobs, users can achieve precise focus, essential for intricate microscopic studies. The inclined and rotatable head design provides ergonomic comfort during extended observation sessions.

Reliable Lighting and Durable Design

Equipped with a built-in LED or halogen illumination system and adjustable intensity, this instrument provides consistent, bright field lighting for clear specimen visualization. The robust metal and glass construction, powder-coated finish, and box-packed accessories ensure longevity, ease of maintenance, and safe transport.

FAQ's of Research Microscopes:

Q: How does the built-in illumination system benefit laboratory research?

A: The built-in LED or halogen illumination provides adjustable brightfield lighting, allowing researchers to adapt light intensity to various samples and objectives. This ensures clear, detailed observation, essential for precise analysis during biological or clinical studies.

Q: What is the process for using the 100X oil immersion objective?

A: To use the 100X oil immersion objective, place a drop of immersion oil on the cover slip, position the slide on the stage, and carefully rotate the 100X objective into place. Adjust focus using the fine knob for sharp imaging. Always clean lenses after use to maintain clarity.

Q: When should the Abbe condenser with diaphragm be adjusted?

A: The Abbe condenser and diaphragm should be adjusted whenever you switch objectives or examine different specimen types. Proper adjustment focuses the light and optimizes image contrast, especially at higher magnifications.

Q: Where can this microscope be utilized most effectively?

A: This optical microscope is best suited for laboratory, research, academic, and clinical environments where high-resolution imaging and consistent performance are required. It's ideal for universities, hospitals, and research institutions across India.

Q: What are the main advantages of the mechanical stage with X-Y movement?

A: The mechanical stage with X-Y movement allows precise and effortless positioning of slides, enabling systematic sample scanning and repeatability during detailed analysis. This feature ensures efficiency and accuracy in laboratory workflows.

Q: Is the microscope suitable for both monocular and binocular observation?

A: Yes, this research microscope supports both monocular and binocular displays, catering to user preferences and diverse laboratory requirements. The rotatable and inclined head design maximizes user comfort during extended observation sessions.
