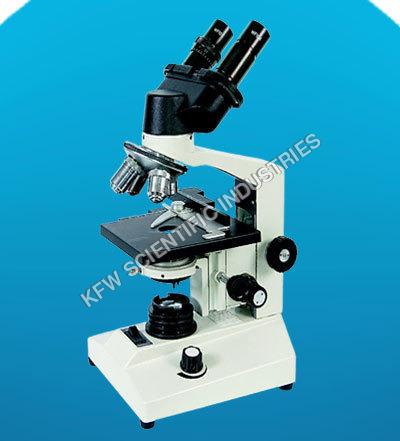

Student Microscope

Get a Price/Quote

Student Microscope Specification

Instruments Type
Microscope

Surface Finish
Smooth

Disposable Or Reusable
Reusable

Function
Magnification of small objects

Diameter
Eyepiece: 18 mm

Finish Type
Powder Coated

Display
Monocular

Instrument
Microscope

Type
Student

Material
Brass and Metal Body

Condition
New

Technology
Optical

Portable
Yes

Rechargeable
No

Foldable
No

Sterilized
No

Waterproof
No

Usage
Laboratory, School, College, Science Teaching

Operating Type
Manual

Dimension (L*W*H)
Approx. 30 cm x 14 cm x 12 cm

Weight
Approx. 2.5 kg

Features
Coarse & Fine Focusing, Stage Clips, Fixed Condenser

Type Of Equipment
Microscopy

Size
Standard

About Student Microscope

Technical Specifications
*	Stand	:	Stable & Robust, Traditional Horse Shoe Base
*	Body	:	Inclined Through 90, Standard Tube Length Of 160mm
*	Focusing	:	Separate Coarse and Fine Focusing knobs With Graduation on One Side. Coarse Movement By Rack & Pinion and Fine Movement by Screw Lever Mechanism
*	Nose Piece	:	Triple Revolving Nosepiece is Provided With Positive Click Stop For Proper Centering Movement Of Specimens
*	Stage	:	Fixed Square Stage 125 X 125 mm With Stage Clips to Hold the Slide
*	Illumination	:	Illumination Through a 50 mm Diameter plano concave mirror mounted on gimbal mount.
*	Objectives	:	Two Achromatic Objectives Of 10X & 40X (SL)
*	Eye pieces	:	Two Huygenian Eyepiece Of 6X, 10X or 15X
*	Condenser	:	Sub Stage Abbe Condenser With N.A. 1.25 Moves Up and Down by Rack and Pinion. Iris Diaphragmand Filter Holder are Mounted with the Condenser.

Versatile Magnification For Detailed Observation

This microscope offers magnification ranges of 100x, 200x, and 400x through interchangeable wide-field eyepieces and fixed achromatic objectives. Whether examining plant cells, microorganisms, or prepared slides, students benefit from a clear, detailed view, which enhances learning and scientific curiosity.

Robust Build and Thoughtful Design

A solid brass and metal body with a powder-coated, smooth finish ensures longevity and reliability. The fixed stage with stage clips, coarse and fine adjustment knobs, and an inclined, rotatable monocular head make the instrument user-friendly for students. Supplied in a sturdy cardboard box, it is portable for easy movement between classrooms.

Application in Education and Science

Specifically designed for laboratory, school, and college settings, this optical microscope aids in hands-on teaching and science demonstrations. Its standard size and practical features ensure it meets the needs of instructors and encourages active student participation in microscopy.

FAQs of Student Microscope:

Q: How do I change the magnification on this student microscope?

A: To change the magnification, switch between the 10x and 20x wide field eyepieces and select either the 10x or 45x achromatic fixed objective lens. By combining these, the microscope provides 100x, 200x, or 400x total magnification for observing various specimens.

Q: What is the process for focusing an image clearly?

A: Use the coarse adjustment knob to bring the specimen into general focus, then fine-tune the image using the fine adjustment knob. This dual focusing system allows for precise and sharp visualization of microscopic details.

Q: Where can this microscope be used most effectively?

A: This student microscope is designed for use in laboratories, schools, and colleges. It is well-suited for science teaching, practical classroom demonstrations, and hands-on student activities involving biological or prepared slides.

Q: When should I use the stage clips and fixed condenser?

A: Stage clips hold slides securely on the fixed stage during observation, ensuring stability. The fixed condenser and disc diaphragm enhance contrast and light control, making detailed structures easier to see during microscopy sessions.

Q: What are the advantages of the microscopes monocular inclined head?

A: The inclined, rotatable monocular head enhances comfort during prolonged observations by allowing the user to adjust the viewing angle. This design helps reduce neck strain and provides flexibility for different users.

Q: Is the microscope suitable for portable use or fieldwork?

A: While the microscope is compact and housed in a sturdy cardboard box for easy portability between rooms, it is not rechargeable or foldable, and works best in indoor laboratory or classroom environments with stable surfaces and appropriate lighting.

Q: What benefits does the brass and metal powder-coated body provide?

A: The brass and metal construction, finished with powder coating, ensures the microscope is robust, durable, and resistant to scratches or wear, making it an ideal long-term investment for repeated educational use.
