About Slit Lamp Haag Type

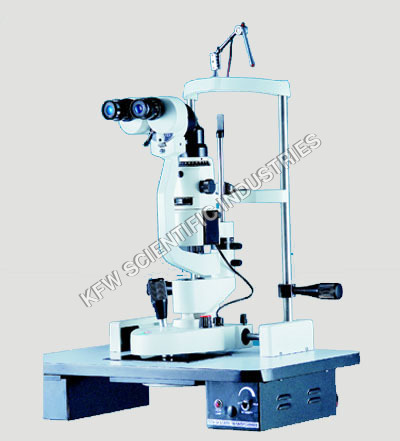

Slit Lamp Haag Type

The Slit Lamp Haag Type is a precision ophthalmic diagnostic instrument designed for detailed examination of the anterior and posterior segments of the eye. Equipped with high-quality optics and a reliable illumination system, it provides exceptional clarity and accurate visualization for eye care professionals.

Its ergonomic design, smooth joystick control, and durable construction ensure comfortable operation and long-term performance in hospitals, eye clinics, and ophthalmology centers. The instrument delivers consistent optical performance, making it suitable for routine eye examinations and diagnostic procedures.

Technical Specifications

Binocular Microscope

• Eyepieces: 10x (15x Optional)

• Objectives: 1x, 1.6x

• Total Magnification: 10x, 16x, 24x

Illumination Unit

• Slit Image Rotation: 0° to 180°

• Tilting Illumination Angles: 5°, 10°, 15°, 20°

• Filter Disc: Cobalt Blue, Green, Yellow, Open Aperture

• Slit Diaphragm Disc: Six apertures of 12 mm, 9 mm, 7 mm, 3 mm, and 0.2 mm, including a wedge-shaped diaphragm for variable slit lengths

• Light Source: Halogen Lamp

• Lamp Rating: 6V, 20W

Standard Accessories

• 15x Eyepiece

• Halogen Lamp (Philips/Osram)

• Mirror

• Testing Rod

• Dust Cover

• Fuse

Features

• High-quality optical system for clear and detailed observation

• Multiple magnification options

• Smooth and precise joystick operation

• Durable and robust construction

• Easy-to-use controls

• Suitable for hospital and clinical environments

• Reliable illumination with multiple filter options

• Designed for accurate ophthalmic examinations

Applications

• Eye hospitals

• Ophthalmology clinics

• Vision care centers

• General ophthalmic examinations

• Diagnostic eye assessments

Condition: New
Portable: Yes
Wall Mounted: No
Display: Nil
Use: Hospital
