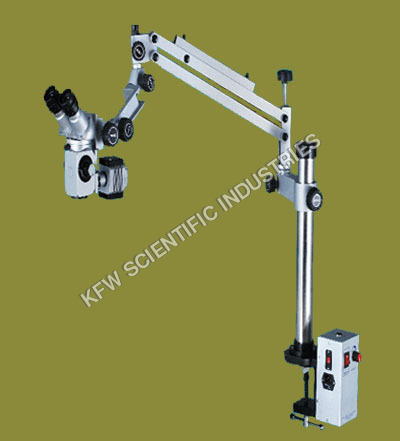

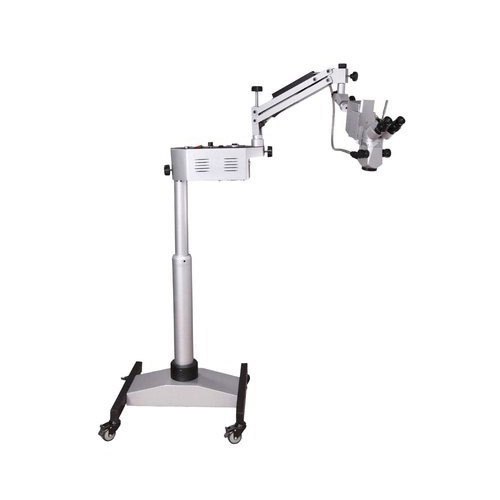

DENTAL Microscope (Direct LED)

Name: DENTAL Microscope (Direct LED)
Brand: KFW SCIENTIFIC INDUSTRIES
Price: 52000.0 INR
Availability: InStock

Price 52000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

DENTAL Microscope (Direct LED) Specification

Frequency
50/60 Hz Hertz (HZ)

Function
Magnified Visualization for Microsurgery

Instruments Type
Microscope

Surface Finish
Epoxy Powder Coated

Instrument
Other

Type
Other

Condition
New

Portable
Yes

Rechargeable
No

Foldable
Yes

Waterproof
No

Use Type
Medical/Clinical

Usage
Microsurgery, Operation Theatre

Operating Type
Manual

Power Source
Other

Voltage
110V/220V AC Ampere (amp)

Dimension (L*W*H)
Base 600 x 600 mm (approx.) Millimeter (mm)

Type Of Equipment
Surgical Microscope

Size
Standard, Adjustable Height

Movement
360 Rotatable Arm

Eyepiece
10x Wide field Eyepiece, Diopter Adjustment

Halogen Bulb Life
Approx. 500 Hours

Working Distance
200 mm (Standard Objective)

Light Adjustment
Variable Intensity Control

Focusing Mechanism
Manual Fine Focus

Magnification Range
3 Steps, 3.4x to 21x

Stand
Mobile Adjustable Stand with Castors

Illumination Type
Direct Halogen Lamp 15V/150W

Binocular Tube Inclination
45 Degrees

DENTAL Microscope (Direct LED) Trade Information

Minimum Order Quantity
1 Number

Delivery Time
5 Days

About DENTAL Microscope (Direct LED)

Surgical Microscope (Direct Halogen)

Surgical Microscope (Direct Halogen) is used for diagnosing dental ailments. This Visine's product provides different ways of fixation, working distance and magnification. This equipment is with halogen lamp for illumination with continuous adjustments. Because it is lightweight and flexible it is being used in surgeries. It provides a better medium to surgeons for operating on patient. Surgical Microscope

Specifications

Microscope Section

Binocular Tube	:	45 inclined (OPHTHALMIC)

Eyepieces	:	12.5x/ 10x/ 16mm Dioptric Adjustment

Magnification Changes	:	Built in Manual 3-Step Changer

Total Magnification	:	7.5x,12.5x,20x

Field of View	:	59mm, 37.8mm, 23.5mm

Objective Lens	:	F = 200(For General Micro-Surgical Fields)

Working Distance	:	200mm

Inter pupillary Distance Adjustment	:	55mm to 75mm

Illumination Section

Type	:	Direct Halogen

Light Source	:	24V/250Watts Halogen lamp

Illumination Control	:	Continuous Adjustment

Field of illumination	:	70mm

Filter	:	Cobalt Blue, Red Free, Heat Absorbing

Stand Section

Type	:	Table Clamp

Vertical Movement Of Counterbalanced Arm	:	400 mm

General Information

Weight	:	50Kg.

Height	:	1550mm

Electrical Power	:	AC 220V, 240V, 50/60 Hz

Power Consumption	:	220 VA/110V

Optional Accessories

Beam Spliter With CCD Camera Attachment

CCD Camera

Optional accessories are listed as separate items in "Accessories" section under products, there brought separately.

Precision Illumination with Direct Halogen Lamp

This surgical microscope features a 15V/150W direct halogen lamp, providing intensely focused and consistent lighting for surgical procedures. With variable intensity control, medical professionals can easily adjust the brightness to suit different microsurgery requirements, ensuring optimal visibility for delicate operations.

Versatile Magnification and Fine Focus Control

Designed for advanced microsurgery, the microscope provides a three-step magnification range from 3.4x to 21x through 10x wide-field eyepieces and manual fine-focus adjustment. This enables surgeons to achieve clear and precise visualization, tailored to the specific needs of ENT, dental, or ophthalmic procedures.

Mobility and Ergonomic Operation

Equipped with a mobile stand and 360 rotatable arm, the microscope is easy to position for a variety of operating theatre setups. Its ergonomic 45-degree binocular tube inclination and adjustable height ensure sustained comfort for surgeons during long procedures, while the epoxy powder-coated surface guarantees durability and ease of cleaning.

FAQs of Surgical Microscope (Direct Halogen) :

Q: How does the direct halogen illumination benefit surgical procedures?

A: The direct halogen lamp delivers bright, focused light with variable intensity control, ensuring excellent visibility for intricate microsurgical tasks across medical, ENT, dental, and eye surgeries.

Q: What is the magnification range and how is it adjusted?

A: The microscope provides three magnification steps, ranging from 3.4x to 21x, adjustable through a simple control, enabling precise visualization required for various types of microsurgery.

Q: When should the halogen bulb be replaced?

A: The halogen bulb typically lasts for approximately 500 hours. It should be replaced once brightness diminishes or the bulb fails to ensure consistent lighting during procedures.

Q: Where can this surgical microscope be used effectively?

A: It is designed for operation theatres and clinical environments, particularly for medical, ENT, dental, and ophthalmic microsurgeries, offering portability with its castor-mounted mobile stand.

Q: What focusing mechanism does the microscope use?

A: Manual fine focus is employed for precise control, allowing users to make incremental adjustments to achieve the desired level of clarity depending on the surgical context.

Q: Is this microscope foldable and portable for different clinical settings?

A: Yes, the microscope is foldable and mounted on a mobile stand with castors, making it easy to relocate within clinical or hospital environments as needed.

Q: What are the primary benefits of using this surgical microscope in a clinical setting?

A: It enhances magnified visualization, improves illumination for detailed surgeries, is reusable, and offers ergonomic features that contribute to prolonged surgeon comfort and operational efficiency.
