Surgical Microscope

Get a Price/Quote

Surgical Microscope Specification

Frequency
50 Hz

Disposable Or Reusable
Reusable

Display
Dual Eyepiece, No LCD

Function
Enhanced Visualization

Diameter
Objective Lens: 65 mm

Instruments Type
Surgical

Surface Finish
Smooth Coated

Finish Type
Powder Coated

Instrument
Microscope

Type
Optical Surgical Microscope

Material
Metal and Optical Glass

Condition
New

Technology
Magnification with Optical Lenses

Portable
Yes

Rechargeable
No

Foldable
Yes

Sterilized
Non-sterile

Waterproof
No

Use Type
Hospital, Clinical, Surgical

Usage
Neurosurgery, ENT, Dental, Ophthalmic Surgery

Operating Type
Manual/Mechanical

Power Source
Electric

Voltage
220V-240V

Dimension (L*W*H)
Height Adjustable, Approx 1200 mm (H)

Weight
Approx 35 kg

Application
Microsurgery, Precision Medical Procedures

Features
LED Illumination, Coarse and Fine Focusing, Adjustable Arm

Type Of Equipment
Surgical Microscope

Size
Standard

Field of View
Wide (Adjustable per Magnification)

Arm Type
Articulated Arm with 360 Movement

Head Type
Binocular Tilt-able Head

Stand Type
Mobile Floor Stand with Castor Wheels

Focusing Mechanism
Coarse and Fine Adjustment

ISO Certification
ISO 13485

Working Distance
200 mm - 400 mm Adjustable

Light Intensity Control
Variable with Rheostat Control

Illumination Type
In-built LED or Halogen Light Source

Magnification Range
3-step or 5-step Magnification (Typical: 3x, 5x, 8x, 12x, 20x)

Color
White/Grey

Eyepiece
10x/12.5x Wide Field

About Surgical Microscope

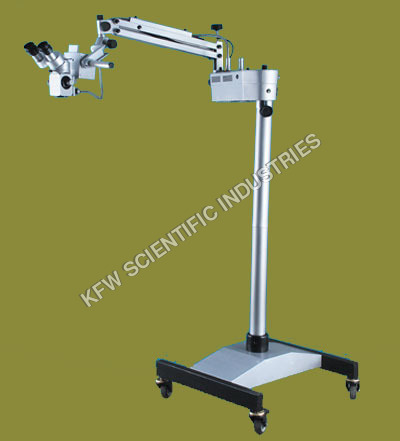

Surgical Microscope

Surgical Microscope is commonly used for common dental surgeries to the patient. It is lightweight and flexible, can also be used in microscopy and diagnosis of diseases. It has Filter with the Light Source as Halogen Lamp that makes the light get in to the target and the make a clear image of the effected part.

Specifications

Microscope Section

Binocular Tube

45° Inclined

Eye Pieces

12.5x / 10x / 16mm Dipptric Adjustment

Magnification Changes

Built In Manual 5-Step Changer

Total Magnification

5x, 7.5x, 12.5x, 20x, 30x

Field Of View

59 mm, 37.8mm, 23.5mm, 14.5mm, 9.5mm

Objective Lens

F = 200mm (For General Micro-Surgical Fields)


Working Distance	:	200mm

Interpupillary Distance	:	55mm to 75mm
Adjustment

Illumination Section

Type

By Optical Light Guide System

Light Source

24V/250Watts Halogen Lamp

Illumination Control

Continuous Adjustment


Field Of Illumination	:	70mm

Filter	:	Cobalt Blue, Red-free, Heat ; Absorbing Filter

Stand Section

Type	:	Floor Stand

Vertical Range Of Counterbalanced Arm	:	400mm

General Information

Base Size	:	600mm X 550mm

Weight	:	50 Kg.

Height	:	1550mm

Electrical Power	:	AC 220V, 240V, 50/60 Hz

Power Consumption	:	220 VA/110V

Optional Accessories

	Beam Spliter With CCD Camera Attachment

	CCD Camera

	Table Clamp Attachment

Optional accessories are listed as seprate items in "Accessories" section under products, there brought seprately.

Highly Adjustable for Precision and Comfort

Designed with an articulated arm enabling seamless 360 movement, this microscope allows precise alignment even in complex surgical setups. The height-adjustable mobile floor stand and tiltable binocular head further enhance user comfort, making it suitable for long procedures and various surgical environments. Dual eyepieces offer optimal visualization to both primary and assisting surgeons.

Superior Visualization with Wide Magnification Range

Whether you need to observe fine details or broader surgical areas, the 3-step or 5-step magnification system (ranging from 3x up to 20x) delivers sharp, clear images. The wide field of view and adjustable focus ensure that surgeons can maintain excellent clarity at different working distances, improving the accuracy of microsurgical interventions.

Reliable Illumination and Easy Operation

Equipped with an in-built LED or halogen light source, the microscope provides consistent, high-intensity illumination throughout procedures. Rheostat control allows users to adjust light intensity precisely. Manual mechanical controls, including coarse and fine focusing, contribute to effortless operation and adaptability across various surgical specialties.

FAQ's of Surgical Microscope :

Q: How does the microscope's adjustable magnification benefit surgical procedures?

A: The 3-step or 5-step magnification system allows surgeons to switch between different levels of detail (3x to 20x), making it easier to adapt to variable visualization needs during complex microsurgeries. This flexibility improves precision and outcomes for procedures in neurosurgery, ophthalmology, ENT, and dental applications.

Q: What is the advantage of having both coarse and fine focusing mechanisms?

A: Coarse and fine focusing mechanisms enable rapid initial adjustment and precise fine-tuning of the image, ensuring clear visualization at any magnification. This dual-focus system is crucial for maintaining clear, uninterrupted views during delicate surgical procedures.

Q: When should the in-built LED or halogen illumination be used?

A: The integrated LED or halogen light source should be used whenever bright, consistent illumination is required during surgery. Choose between LED for longer lifespan and cooler operation or halogen for a warmer light tone, depending on surgical preference and procedure requirements.

Q: Where can this surgical microscope be used effectively?

A: This microscope is designed for use in hospitals, clinics, and specialized surgical centers. Its portability and articulated arm make it suitable for various departments, including neurosurgery, ENT, dental, and ophthalmic surgeries, ensuring reliable performance across multiple medical fields.

Q: What is the process for adjusting the microscope for different users or surgical scenarios?

A: Operators can customize the working distance (200 mm - 400 mm adjustable), adjust the arm position (360 movement), tilt the binocular head, and modify the magnification and light intensity using easy-to-access controls. This allows quick adaptation for different surgeons or case requirements.

Q: How does the mobile floor stand with castor wheels enhance usability?

A: The mobile stand with castor wheels provides stability while allowing easy transportation and repositioning within operating rooms. This flexibility makes setup seamless, accommodates space constraints, and enables smooth transitions between surgeries.

Q: What are the primary benefits of using this microscope for precision medical procedures?

A: This surgical microscope enhances visualization, improves surgical accuracy, offers ergonomic operation, and delivers reliable illumination-all contributing to better procedural outcomes and increased surgeon comfort during extended, delicate surgeries.
