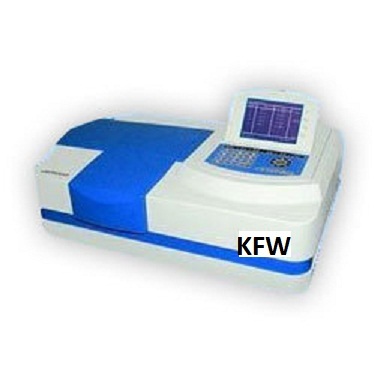

Double Beam UV Visible Spectrophotometer

Get a Price/Quote

Double Beam UV Visible Spectrophotometer Specification

Voltage
220V AC

Automation Grade
Semi-Automatic

Model No
UVS-2002DB

Core Components
UV lamp, Cuvette Holder, Photomultiplier Detector, Optical System

Power Source
AC Mains

Capacity
2 ml to 100 ml (compatible with standard cuvettes)

Accuracy
0.5 nm wavelength accuracy

Measurement Range
190 nm to 1100 nm

Feature
High Accuracy, Dual Beam, Computer Interface, Auto calibration

Frequency
50/60 Hz

Temperature Range
Ambient, 5C to 45C operating

Equipment Materials
High-grade ABS plastic body, Quartz optics

Type
Double Beam UV-Visible Spectrophotometer

Usage
Quantitative and qualitative spectrophotometric analysis

Display Type
Large LCD Graphic Display

Dimension (L*W*H)
550 mm x 450 mm x 220 mm

Weight
18 kg (approx.)

About Double Beam UV Visible Spectrophotometer

Double Beam UV Visible Spectrophotometer ffered comes with wavelength range of 190-1100 nm, spectral bandwidth of 1 nm, working mode of T,A,C,E and double beam based optical system. Further, the system can deliver fast, medium and slow scanning speeds and have other support options including glass cells, quartz cells, fuse, instrument cover, software CD, RS 232 cable and operation manual. Some of the other standard range of the system includes photometric range of -0.3 - 3.5 A, 0 to 220 %T, wavelength accuracy of +0.3 nm, wavelength reproducibility of < 0.10 nm as well as photometric accuracy of + 0.3% T (0-100% T) & +0.002 A (0-0.1 A) among others.

Technical Specifications:-

Wavelength Range	190-1100 nm
Spectral Bandwidth	1 nm
Working Mode	T,A,C,E
Optical System	Double beam
Scanning Speed	Fast / Medium / Slow
Photometric Range	-0.3 - 3.5 A, 0 to 220 %T
Wavelength Accuracy	+0.3 nm
Wavelength Reproducibility	< 0.10 nm
Photometric Accuracy	+ 0.3% T (0-100% T) +0.002 A (0-0.1 A)
Photometric Reproducibility	< 0.15 % T
Stray Light	< 0.1% T (Nal. 220nm, NaNO2 340 nm)
Baseline Flatness	+ 0.002 A
Stability	< 0.001A/h (at 500 nm, after warming up)
Noise	+0.001A (at 500 nm, after warming up)
Detector	Dual Silicon Photodiode
Display	6 inches high light blue LCD
Power	AC:220V + 10%, 50 Hz.
Dimensions	630 x 470 x 210 mm
Weight	26 Kg
Glass Cells	16 No.
Quartz Cells	4 Nos.
Fuse	3 Nos.
Instrument Cover	1 No.
Software CD	1 No.
RS 232 Cable	1 No.
Operation Manual	1 No.

High Accuracy Dual Beam Analysis

This spectrophotometer offers exceptional accuracy, with wavelength repeatability 0.2 nm and baseline flatness 0.002 Abs. The dual beam design, incorporating premium quartz optics and an imported silicon photodiode detector, allows accurate quantitative and qualitative analysis, minimizing measurement errors. Auto-calibration ensures consistent performance for vital research and industrial applications.

User-Friendly Operational Features

Equipped with a large LCD graphic display and semi-automatic controls, the UVS-2002DB simplifies the workflow. The 4-position auto-changer and selectable scanning speeds (high, medium, low) allow flexible sample analysis. USB and RS232 connectivity support immediate data sharing, while compatibility with Windows OS enhances integration with laboratory systems.

Robust Construction and Versatility

Manufactured with a high-grade ABS plastic body, quartz optics, and a reliable AC mains power source, this spectrophotometer promises durability. Its broad capacity range (2 ml100 ml standard cuvettes) suits diverse sample requirements. Designed for environments with up to 85% RH and operating between 5C and 45C, it is suitable for varied laboratory conditions.

FAQs of Double Beam UV Visible Spectrophotometer:

Q: How is the Double Beam UV Visible Spectrophotometer used for spectrophotometric analysis?

A: The spectrophotometer utilizes a double beam optical system with deuterium and tungsten halogen lamps to analyze samples over 190 nm to 1100 nm. Users place samples in the 4-position auto-changer cuvette holder, select desired measurement mode and scan speed, then view results on the large LCD display or export data via USB or RS232.

Q: What are the key benefits of dual beam design in this spectrophotometer?

A: The dual beam design enhances measurement accuracy by simultaneously comparing sample and reference signals, reducing noise and drift. This results in more reliable quantitative and qualitative data, especially helpful in sensitive assays or routine laboratory applications.

Q: When should I use the different operating modes available on the spectrophotometer?

A: Choose "Spectrum" mode to record absorbance across a range of wavelengths, "Quantitative" mode for concentration determinations, "Kinetics" to monitor reaction progress, and "Multi-wavelength" for simultaneous reading at several set wavelengths. Select based on your specific analytical requirements.

Q: Where can the UVS-2002DB spectrophotometer be installed for optimal use?

A: It is suitable for laboratories in universities, research institutes, pharmaceutical industries, and manufacturing facilities. Ensure installation in an environment with ambient temperature (5C45C), humidity 85% RH, and stable AC mains power for best results.

Q: What is the process for sample preparation and measurement using this equipment?

A: Prepare samples using standard cuvettes (2 ml to 100 ml), ensuring cleanliness and proper volume. Insert the cuvette into the auto-changer, configure measurement settings, perform auto-calibration, and initiate the analysis. The system provides rapid, stable results with selectable scanning speeds.

Q: How does auto-calibration impact instrument accuracy and reliability?

A: Auto-calibration adjusts optical and electronic components automatically, ensuring consistent wavelength accuracy (0.5 nm) and minimal drift or baseline deviation. This reduces manual intervention and maintains high analytical reliability over time.
