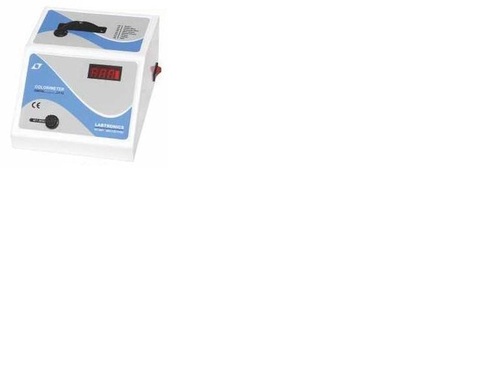

Ezycolor Colorimeter

Get a Price/Quote

Ezycolor Colorimeter Specification

Feature
Ergonomic design, User-friendly interface, Fast calibration

Temperature Range
10Â°C to 40Â°C

Frequency
50 Hz

Measurement Range
0-2.5 Absorbance Units

Automation Grade
Semi-Automatic

Voltage
230 V AC

Core Components
Optical Sensor, Microprocessor, LCD Panel

Accuracy
Â±0.01 in absorbance units

Model No
EC-100

Power Source
Rechargeable Lithium Battery

Capacity
Single unit measurement

Equipment Materials
High-grade ABS Plastic

Type
Portable Colorimeter

Usage
Color measurement in industrial, laboratory, and educational settings

Display Type
Digital LCD Display

Dimension (L*W*H)
180 x 70 x 40 mm

Weight
350 grams

Interface
USB Connectivity for PC Data Transfer

Included Accessories
Carrying Case, Calibration Standard, Power Adapter, Instruction Manual

Operating Humidity
Up to 80% RH, non-condensing

Sample Size
Cuvette 10 mm path length

Languages Supported
English

Compliance
ISO 9001:2015 Certified

Calibration Method
Automatic Zero Calibration

Light Source
LED

Response Time
<2 seconds

Battery Life
Up to 10 hours continuous use

Spectral Range
400 nm – 700 nm

Storage Temperature
-10°C to 50°C

About Ezycolor Colorimeter

Technical Specifications
~~~~~~~~~~~~~~~~~

Range : 400 ~ 700 nm
Display : Dual Digital Display
Filters : Built in 9 Digital filters > 30,000 hours Life
Filter Wavelength : 400 nm, 430 nm, 500 nm, 520 nm, 540 nm, 580 nm, 600 nm, 620 nm, 680 nm
Display Model : Absorbance & Wavelength
Detector : Silicon Photodiode
Zero Adjustment : Auto Zero by Microprocessor
Accuracy : + 0.01 O.D.
Stability : + 0.02 O.D. Per Hour
Light Source : Highly Accurate Laser Source
Amplifier : Micro Controller Based
Volume : 1 ml. minimum
Dimension : L 210 X B 160 X H 80 mm (approx.)
Weight : 1.5 Kg. Approx
Power : 230 V + 10 % A.C. , 50 Hz.
Battery Backup : 6 V Ni CD Re-chargable Battery
Accessories : Set of 6 test tubes , Dust cover - 1 No. and Operation Manual

Salient Feature
~~~~~~~~~

Digital Wavelength
9 Filters , 400 ~ 700 nm
6 V Ni CD Rechargable Battery
Easy to operate , can be used by semi skilled technician even in field laboratories.

Efficient and Accurate Color Measurement

Utilizing a broad spectral range from 400 nm to 700 nm, the Ezycolor Colorimeter provides rapid response times (less than 2 seconds) and high measurement accuracy (0.01 absorbance units). Its automatic zero calibration ensures each reading is reliable and repeatable, making it a preferred solution for professionals seeking consistent performance.

Designed for User Comfort and Convenience

Manufactured with high-grade ABS plastic, this device features an ergonomic and user-friendly interface. Its lightweight design (350 grams) and compact dimensions facilitate effortless transport and operation in various settings. The convenient carrying case, included in the accessory kit, safeguards the instrument during transit.

Seamless Connectivity and Data Management

Data transfer is streamlined through USB connectivity, allowing immediate reporting and analysis on a PC. Multilingual support, including English, paired with digital LCD readouts, enables ease of use for diverse users. The included instruction manual ensures straightforward setup and operation.

FAQs of Ezycolor Colorimeter:

Q: How does the Ezycolor Colorimeter perform calibrations?

A: The EC-100 implements automatic zero calibration, ensuring fast and accurate baseline adjustment before each measurement. This process eliminates manual steps and guarantees reliable results every time.

Q: What sample sizes can be measured using this colorimeter?

A: This device is designed to measure samples placed in 10 mm path length cuvettes, catering to a range of standard laboratory and industrial sample requirements.

Q: When is it recommended to use the Ezycolor Colorimeter for color assessment?

A: The colorimeter is ideal for use in quality control, research, and educational settings whenever precise and rapid color measurement is essential, especially for absorbance values ranging from 0 to 2.5 units within the visible spectrum.

Q: Where can data measured by the colorimeter be transferred and stored?

A: Measured data can be quickly transferred to a PC via the inbuilt USB connectivity, enabling storage, documentation, and analysis for ongoing or archival use.

Q: What makes this model suitable for portable tasks?

A: Weighing only 350 grams and built with compact dimensions (180 x 70 x 40 mm), the EC-100 is easily transportable. Its rechargeable battery provides up to 10 hours of continuous operation, and the included carrying case supports safe portability.

Q: How is user safety and reliability ensured for this colorimeter?

A: With ISO 9001:2015 certification, robust ABS plastic construction, and clear operating conditionstemperature range from 10C to 40C and humidity up to 80% RH non-condensingthe EC-100 is built for safe and dependable operation in diverse environments.

Q: What benefits does the digital LCD display offer during measurement?

A: The digital LCD display presents clear, immediate results, making interpretation straightforward. It enhances the ease of operation and reduces the risk of data misreading during color measurement processes.
