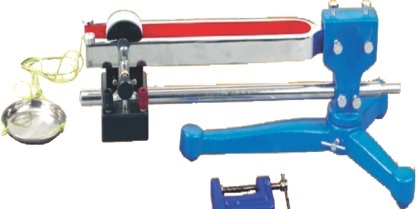

Melde's Apparatus ( OSAW Pattern)

Get a Price/Quote

Melde's Apparatus ( OSAW Pattern) Specification

Frequency
Variable, depends on tuning fork (typically 50 Hz to 100 Hz with supplied tuning fork)

Temperature Range
Ambient

Model No
OSAW - Standard Pattern

Core Components
Heavy cast iron base, vertical metal rod, pulley with clamp, scale, string, pan, tuning fork holder

Accuracy
Depends on calibration, suitable for educational demonstration

Power Source
Manual and tuning fork vibration (no electrical input required)

Automation Grade
Manual

Feature
Stable base, smooth pulley, easy mounting for tuning fork, scale for length measurement

Capacity
Single experiment apparatus

Measurement Range
Variable string lengths and tension for wave formation

Equipment Materials
Cast iron base, metallic upright and accessories, string, pulley

Type
Meldes Apparatus (OSAW Pattern)

Usage
For demonstrating standing transverse and longitudinal waves on a string

Display Type
Analog (no digital display)

Dimension (L*W*H)
Base size approx. 40 x 7 x 4 cm

Weight
Approx. 2.5 kg

Included Accessories
Tuning fork, string, pan, weights

Base Slot Features
Machined slot for firm rod mounting

Pulley Type
Grooved, smooth rotating

Rod Height
Approx. 45 cm

Application
Physics laboratory, wave mechanics experiment

Pan Capacity
Holds standard weights up to 1 kg

Finish
Corrosion-resistant paint on base and metallic parts

Scale Graduation
Millimeter/centimeter marking for precise length reading

String Type
Cotton or nylon, light and strong

Mounting
Table-top, non-slip base

About Melde's Apparatus ( OSAW Pattern)

Ending Soon: Take advantage of this special offer on the Meldes Apparatus (OSAW Pattern), a pivotal tool for physics laboratory experiments. This remarkable device features a grooved, smooth-rotating pulley and a stable base finished with corrosion-resistant paint, ensuring longevity and reliability. With a pan capacity for standard weights up to 1 kg and a scale offering precise millimeter and centimeter graduations, its sensational for demonstrating standing transverse and longitudinal waves. Suitable for use with cotton or nylon string, it comes complete with a tuning fork, string, pan, and weights. This table-top apparatus offers analog display, variable measurement, and manual operation, making it a spotlight choice for educational purposes.

How to Use & Where to Apply Meldes Apparatus (OSAW Pattern)

For optimal results, set up the Meldes Apparatus on a stable, non-slip tabletop. After mounting the rod and aligning the smooth, grooved pulley, attach the string, pan, and required weights. Use the supplied tuning fork to generate vibrations, displaying the formation of standing waves. This equipment is ideal for demonstrating wave mechanics in physics labs. Applications include educational demonstrations focused on wave physics, making it a fundamental apparatus for schools, colleges, and research institutions.

Sample Policy, Packing & Shipping for Meldes Apparatus

Sample requests are estimated on a case-by-case basis and may incur a nominal charge, depending on order volume. Packaging is robust, with each unit carefully packed to ensure safe transport. We utilize reliable transport services to deliver throughout the main domestic market of India. Our efficient logistics ensure prompt and safe dispatch, minimizing the risk of transit damage. Clients can request detailed packaging specifications and estimate delivery timelines upon inquiry.

FAQs of Meldes Apparatus ( OSAW Pattern):

Q: How is the Meldes Apparatus (OSAW Pattern) typically used in a laboratory setting?

A: The apparatus is used to demonstrate the formation of standing transverse and longitudinal waves on a string, allowing students to observe the relationship between tension, wave frequency, and length in real-time experiments.

Q: What accessories are included with the Meldes Apparatus upon purchase?

A: Each unit comes with a tuning fork, string (cotton or nylon), pan for weights, standard set of weights up to 1 kg, and necessary mounting hardware for complete experimental setups.

Q: Where is the Meldes Apparatus most commonly applied?

A: It is primarily used in educational institutions such as schools, colleges, and research labs for teaching and demonstration of basic and advanced wave mechanics principles.

Q: How does the tuning fork contribute to the apparatuss operation?

A: The tuning fork produces a constant frequency vibration that is transmitted via the string, causing it to form patterns of standing waves, which are then measured using the attached scale.

Q: What are the main benefits of using the Meldes Apparatus (OSAW Pattern) for teaching?

A: It provides a hands-on, visual method for understanding wave behavior, supporting accurate measurement and straightforward demonstration without the need for external power sources or digital components.
