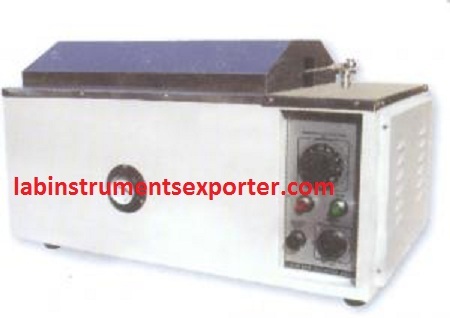

Water Bath Rectangular Single Wall

Get a Price/Quote

Water Bath Rectangular Single Wall Specification

Frequency
50 Hz

Voltage
220-240 V

Core Components
SS Tank, Heating Element, Thermostat, Control Panel

Measurement Range
N/A (temp. control only)

Model No
WBR-SW-01

Automation Grade
Manual

Power Source
Electric

Accuracy
2C

Temperature Range
Ambient +5C to 100C

Capacity
6 L, 12 L, 18 L, 24 L, 30 L (other capacities available upon request)

Feature
Corrosion resistant tank, uniform temperature, easy to clean

Equipment Materials
Stainless Steel tank, powder coated mild steel outer body

Type
Rectangular Single Wall Water Bath

Usage
Laboratory sample incubation, chemical reactions, general heating

Display Type
Analog/Graduated Scale

Dimension (L*W*H)
Various (example: 355 x 300 x 175 mm for 12 L size)

Weight
Varies as per capacity (approx. 8-15 kg)

Lid Type
Lift-off gabled stainless steel lid

Power Consumption
500-1500 W depending on capacity

Heating Element Material
High quality nichrome

Insulation
Glass wool insulation around chamber

Thermostatic Control
Capillary type adjustable thermostat

Safety Features
Over-temperature protection, grounded plug

Inner Tank Finish
Mirror polished stainless steel

Fittings
Fused plug, drainage outlet optional

About Water Bath Rectangular Single Wall

Water Bath Rectangular Single Wall

Single wall) Body made out of thick stainless steel, top made out of chrome plated sheet concentric rings to cover 3" dia holes are provided. Heating elements have an automatic cut-off device which operates when the bath gets dried. Equipment working on 220V AC 50Hz single phase.

Six inside (Stainless Steel) Capacity (Approx.)

300x250x100mm 6 holes of 75mm dia. 8ltrs.
355x405x100mm 12 holes of 75mm dia. 15ltrs.

Superior Construction and Safety

Crafted with a mirror-polished stainless steel inner tank and powder coated mild steel outer body, this water bath offers excellent durability and resistance to corrosion. The glass wool insulation maintains uniform temperature, while features like a fused plug, optional drainage outlet, and over-temperature protection enhance user safety and convenience.

Flexible Capacities and Precise Control

Available in a range of capacities from 6 to 30 liters (custom sizes offered), this water bath supports a temperature range from ambient +5C to 100C, managed by an analog capillary thermostat for 2C accuracy. The device accommodates diverse laboratory tasks, ensuring precise results and reliable sample handling.

FAQs of Water Bath Rectangular Single Wall:

Q: How is temperature controlled in the Water Bath Rectangular Single Wall?

A: The water bath uses a capillary-type adjustable thermostat to regulate temperature precisely within the ambient +5C to 100C range, displaying measurements on an analog scale. This system allows users to easily set and monitor desired heat levels for consistent laboratory results.

Q: What are the main applications of this water bath in laboratory settings?

A: This device is commonly used for sample incubation, conducting chemical reactions, and general heating tasks that require stable and uniform temperature conditions, making it suitable for biology, chemistry, and other scientific laboratories.

Q: When should the over-temperature protection feature be utilized?

A: Over-temperature protection automatically activates if the water bath surpasses a safe preset limit, safeguarding samples and equipment. Users can rely on this feature during prolonged heating cycles or unattended operations for added safety.

Q: Where can this water bath be installed within a lab?

A: The compact rectangular design and variety of size options allow flexible placement on laboratory benches or workstations. Its grounded electric plug permits safe installation in any standard power-supplied laboratory area.

Q: What process ensures uniform temperature throughout the chamber?

A: Glass wool insulation surrounds the stainless steel tank, preventing heat loss and promoting even thermal distribution. Combined with the high-quality nichrome heating element, this design delivers consistent temperature performance throughout the water bath.

Q: How does the lift-off gabled stainless steel lid benefit laboratory usage?

A: The lift-off gabled lid enables easy access for loading and unloading samples, while its stainless steel material resists corrosion and retains heat, contributing to both efficiency and long-term durability.

Q: What are the key benefits for laboratory professionals using this water bath?

A: Lab professionals benefit from the water baths corrosion-resistant tank, uniform temperature control, easy cleaning, multiple safety features, and adaptable capacities. These attributes provide reliability, efficiency, and versatility, streamlining routine heating and incubation processes.
