Vertical Autoclave Double Drum

Get a Price/Quote

Vertical Autoclave Double Drum Specification

Core Components
Chambers, Pressure gauge, Heater, Controller, Lid lock system

Power Source
Electric

Temperature Range
Up to 134C

Model No
VAD-22D

Voltage
220-240 V AC

Measurement Range
0-30 psi

Frequency
50-60 Hz

Automation Grade
Semi-Automatic

Capacity
2 x 22 liters (Double Drum)

Accuracy
0.5C

Feature
Double drum design, self-locking lid, safety valve, pressure release valve

Equipment Materials
Stainless Steel (SS-304/316)

Type
Vertical Autoclave, Double Drum

Usage
Sterilization of medical instruments, laboratory use

Display Type
Analog/ Manual gauge

Dimension (L*W*H)
450 x 450 x 900 mm

Weight
Approx 65 kg

Lid Type
Radial Locking with Silicon Gasket

Inner Chamber Material
Stainless Steel 304 Grade

Pressure Range
Up to 2.2 kg/cm2

Sterilization Cycle Time
15-30 min (Depending on load)

Heating Element
High-grade Immersion Heater, Replaceable

Water Level Indicator
Provided

Power Consumption
2.5 to 3.0 kW

Outer Body Finish
Polished Stainless Steel

Safety Features
Automatic Pressure Cut-off, Spring Loaded Safety Valve

About Vertical Autoclave Double Drum

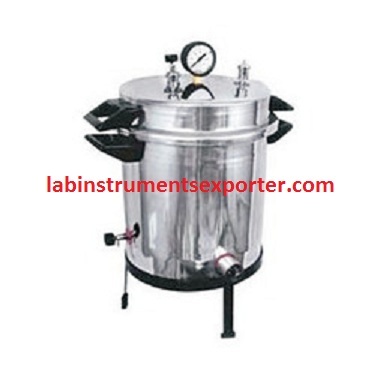

Inner body is made of heavy gauge stainless steel welded. The lid and the ring are made of stainless steel plate. The lid, heavily polished and fitted with pressure gauge, safety Valve and steam exhaust valve. Safety valve is set to blow of 20lb/sq. inch to remove excess steam and maintain constant pressure. A rubber gasket is fitted in the ring to ensure steam tight joints. Outer cover made of polished stainless steel with legs. Fitted with immersion water heaters with foot lifting arrangement for bigger size of autoclave. Perforated basket-made of Aluminium is also provided.

Advanced Safety and Performance

This vertical autoclave ensures user safety with features such as automatic pressure cut-off, a spring-loaded safety valve, and a secure radial locking lid. The stainless steel construction ensures durability and resistance to corrosion, while the analog display and manual gauge offer reliable monitoring during sterilization cycles.

Efficient Double Drum Design

The double drum configuration allows simultaneous sterilization of multiple sets of instruments or materials, optimizing workflow in busy environments. The 2 x 22-liter capacity accommodates a significant volume, reducing cycle frequency and boosting productivity for laboratories and medical facilities.

Precise and Reliable Sterilization Cycle

Achieving temperatures up to 134C and pressures up to 2.2 kg/cm2, this autoclave guarantees effective sterilization within 15-30 minutes depending on the load. The high-grade immersion heater and replaceable components ensure long-term, efficient operation and easy maintenance.

FAQ's of Vertical Autoclave Double Drum:

Q: How does the double drum design benefit users in terms of sterilization efficiency?

A: The double drum structure permits simultaneous sterilization of two separate loads, maximizing throughput and reducing the total number of cycles required. This saves time and energy, especially in environments with high sterilization demands.

Q: What materials are used for the inner chamber and outer body of the vertical autoclave?

A: The inner chamber is constructed from SS 304-grade stainless steel, while the outer body features a polished stainless steel finish, ensuring optimal hygiene and resistance to rust and chemical corrosion.

Q: When should the water level indicator be checked, and why is it important?

A: The water level indicator should be checked before every sterilization cycle to ensure that the correct amount of water is present. Maintaining the proper water level is crucial for generating adequate steam and preventing damage to the heating element.

Q: Where is this vertical autoclave typically used?

A: This model is widely used in hospitals, medical clinics, and research laboratories in India and internationally. It is suitable for sterilizing surgical instruments, glassware, and laboratory materials where reliable sterilization is required.

Q: What safety features are incorporated in this autoclave model?

A: It includes a radial self-locking lid with a silicon gasket, automatic pressure cut-off system, spring-loaded safety valve, pressure release valve, and a water level indicator to ensure operational safety and prevent over-pressurization.

Q: How is the sterilization process conducted in this autoclave?

A: Instruments are placed inside the autoclave's double drums, water is added, and the unit is sealed. The autoclave heats up to create steam, reaching up to 134C and 2.2 kg/cm2, effectively sterilizing items in 15-30 minutes, depending on the load.
