Rota Rod Apparatus

Get a Price/Quote

Rota Rod Apparatus Specification

Automation Grade
Semi-automatic

Operating Voltage
230 V AC

Accuracy
1 second

Frequency
50 Hz

Power Supply
230V AC, 50 Hz

Number of Specimens
2, 4, or 5 rods positions available

Mounting Type
Bench top

Equipment Type
Rota Rod Apparatus

Display Type
Digital LED

Test Range
0-999 sec timer

Temperature
Ambient

Interface Type
Manual/digital

Response Time
Immediate upon animal fall

Max Height
Approx. 21 cm

Humidity
Ambient

Application
To assess motor coordination, balance & endurance in laboratory animals

Specimen Size
Suitable for standard laboratory rats or mice

Measuring Range
0-999 seconds

Features
Digital counter, adjustable speeds, animal fall sensors, non-slip rods

Resolution
1 second

Usage
Pharmacological and neuro-motor studies

Capacity
2, 4, or 5 animals/sample

Machine Weight
Approx. 10-12 kg

Test Speed
2, 5, 10, 15, 20, 25, 30, 40 RPM selectable

Test Width
Wheel width: approx. 6 cm

Test Stroke
Continuous rotation

Control Mode
Digital timer and speed control

Chamber Material
Mild steel powder-coated and clear acrylic shield

Rod Material
Non-corrosive stainless steel

Power Cord Length
1.5 meters

Rod Diameter
Approx. 3 cm

Safety Features
Animal automatic detection upon fall, audible alarm

Timer Type
Digital countdown timer with auto stop

Adjustment
Speed and timer digitally adjustable

Rotational Direction
Unidirectional/CW

About Rota Rod Apparatus

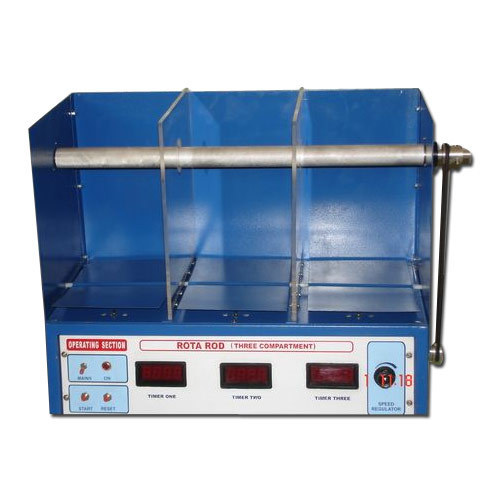

Rotarod Apparatus

KFW engineered by our company comes with digital counter for recording muscle tone, neuro proximity, motor co-ordination in mice and rat, balance, etc. Rota Road Apparatus provided by us consists of compartments that can be two, three or four with 75mm width of each compartment. This Rota rod apparatus possess a rotating road of 25mm diameter with the speed of 5, 10, 15, 20 and 25 rpm. Every compartment of these apparatuses has in built time interval counter. We offer two compartment, three compartment and four compartment Rota Rod apparatus. Today, we are regarded as one of the eminent Digital Rotarod Apparatus Manufacturers in Haryana.

Rota Road Apparatus - Latest with Digital Counter for determining neuro-pixicity, muscle tone, balance and motor co-ordination in rats and mice. Consisting of two or three or four compartments of 75 mm width each with a rotating rod of 25 mm diameter having speed of 5,10,15,20 and 25 rpm with time interval counters in each compartment.

Two Compartment
Three Compartment
Four Compartment

Features :

Sturdy M.S. frame covered with powder coating gives a fine look to apparatus.
Digital timer control panel.
Driven by a D.C. drive in variable speed to the apparatus.
The compartment is divided by a transparent acrylic sheet.

High-Precision Motor Coordination Testing

Engineered for accuracy, the Rota Rod Apparatus provides reliable testing conditions, measuring motor skills and endurance of rodents down to a single second. Its stainless steel rod and digital controls allow researchers to customize speed and timer settings, ensuring consistent and repeatable results across multiple specimens.

Advanced Safety and Detection Features

The equipment incorporates animal fall sensors and an audible alarm, guaranteeing immediate alerts and automatic detection whenever a specimen falls. Its clear acrylic shield and powder-coated chamber enhance safety and easy observation, making the apparatus ideal for sensitive research settings.

Versatile and User-Friendly Design

With customizable rod positions for 2, 4, or 5 animals and adjustable speeds, this semi-automatic Rota Rod is suitable for a variety of pharmacological and neuro-motor studies. The digital interface simplifies operation, while its sturdy build ensures long-term bench-top use in laboratories.

FAQ's of Rota Rod Apparatus:

Q: How do I adjust the speed and timer on the Rota Rod Apparatus?

A: The apparatus features a digital control panel where you can select the desired rod speed (2 to 40 RPM) and set the timer (0-999 seconds) using the clear LED display. Both are adjustable to suit specific test protocols.

Q: What safety features are included in this equipment?

A: This Rota Rod Apparatus is equipped with animal automatic detection upon fall, an audible alarm for immediate notification, a non-slip stainless steel rod, and a clear acrylic shield to maintain user and specimen safety during operation.

Q: Where can the Rota Rod Apparatus be installed for optimal use?

A: Designed for bench top mounting, it is suitable for well-ventilated laboratory environments with access to a standard 230 V AC, 50 Hz power supply and ambient temperature and humidity.

Q: What animal sizes and capacities can this Rota Rod accommodate?

A: The apparatus supports 2, 4, or 5 rod positions, making it capable of testing standard laboratory rats or mice, with a capacity for 2, 4, or 5 specimens per run.

Q: What is the process for testing motor coordination on this machine?

A: Place the rodents on the rotating rod set at your chosen speed and timer; the digital timer counts down and stops automatically. The apparatus records the time to fall, triggering an alarm and digital record when a specimen loses grip.

Q: What is the primary benefit of using this Rota Rod Apparatus in research?

A: It provides accurate, immediate measurement of endurance and motor skills in rodents, crucial for pharmacological and neuro-motor assessments, with easy operation, digital accuracy, customizable capacity, and robust safety measures.

Q: When is this apparatus typically used in the laboratory?

A: It is most commonly used during studies that require evaluation of drug effects, neurological disorders, or gene modifications on balance, coordination, and physical fatigue in laboratory rodents.
