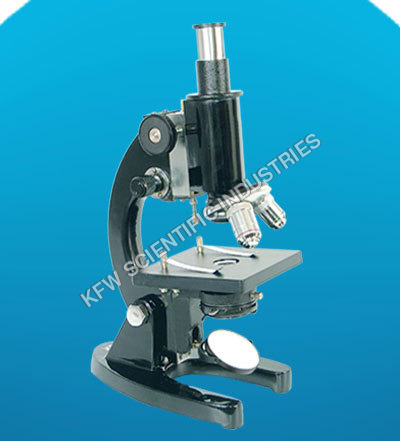

Student Microscope

Get a Price/Quote

Student Microscope Specification

View Head
Monocular, 45 inclined

Features
Sturdy metal base, easy for student use, anti-rust components, lightweight & portable

Spare Parts
Supplied: Spare bulbs, fuse, dust cover, instruction manual

Focus System
Coarse and fine focusing knobs

Theory
Optical microscopy for educational purposes

Drawtube
Monocular

Sensor
N/A (not digital)

Resolution
Depends on eyepiece/objective combination

Interface
Manual

Frame Rate
N/A (not digital)

Magnification
100x, 200x, 450x (standard objectives: 10x, 45x & eyepiece: 10x)

Eyepieces
Wide field 10x

Eyepiece Tube
Monocular, 45 inclined

Illumination
Plano-concave mirror, substage illumination (natural or artificial)

Coarse Adjustment Range
Extensive range for rough focus control

Fine Adjustment Range
Precision micro focus range

Still Image Capture Resolution
N/A (not digital)

Video Capture Resolution
N/A (not digital)

Image Format
Optical (no digital capture)

Objective Achromatic
Achromatic objectives 10x, 45x

Condenser
Fixed condenser with disc diaphragm

Light Source
Plane & Concave Mirror for light reflection

Weight
Approx. 3 kg

Pack Contains
Complete with accessories and user manual

Base Type
Heavy and stable

Slide Holder
Spring loaded clips

Storage
Dust cover included

Body Material
Die-cast metal alloy with corrosion-resistant finish

Adjustable Arm
Inclined monocular head for comfortable viewing

Diaphragm
6-hole disc diaphragm

Nosepiece
Revolving triple nosepiece

Stage Movement
Manual, with mechanical slide clips

Safety
Child-safe construction to avoid pinching

Color
White/Black

Application
School, college, lab practicals

Stage Size
110 x 120 mm approx.

About Student Microscope

To meet the numerous demands of clients, we are committed to manufacture, export and supply an extensive range of Student Microscope. This microscope is specifically designed for performing researches and studies on microorganisms, cell structure, blood samples, tissue culture, etc. Manufactured utilizing quality checked raw material and latest technology, offered microscope is highly acknowledged for its durability and compact design. Additionally, clients can obtain this Student Microscope from us at a market leading rate.

Features:

Optimal performance
Efficient magnification
Maintenance free
Hassle-free functioning

Specifications:

Stand	Stable & Robust, Traditional Horse Shoe Base
Body	Inclined Through 90^o Standard Tube Length Of 160mm
Focusing	Separate Coarse and Fine Focusing knobs With Graduation on One Side. Coarse Movement By Rack & Pinion and Fine Movement by Screw Lever Mechanism
Nose Piece	Triple Revolving Nose piece is Provided With Positive Click Stop For Proper Centering Movement Of Specimens
Stage	Fixed Square Stage 125 X 125 mm With Stage Clips to Hold the Slide
Illumination	Illumination Through a 50 mm Diameter plano concave mirror mounted on gimbal mount.
Objectives	Two Achromatic Objectives Of 10X & 40X (SL)
Eye pieces	Two Huygenian Eyepiece Of 6X, 10X or 15X
Condenser	Sub Stage Abbe Condenser With N.A. 1.25 Moves Up and Down by Rack and Pinion. Iris Diaphragmand Filter Holder are Mounted with the Condenser.

Sturdy Construction for Lasting Performance

Engineered from die-cast metal alloy with a corrosion-resistant finish, this microscope is designed to withstand frequent classroom or laboratory use. The heavy, stable base ensures safety and prevents accidental tipping, making it an ideal choice for young students and educators alike.

Precision Viewing Made Simple

The microscope features an inclined monocular head and a fixed stage with spring-loaded slide clips, simplifying slide handling and comfortable observation. Achromatic objectives and wide-field eyepieces allow for clear magnification selections, enabling detailed study of specimens at 100x, 200x, and 450x magnifications.

Adaptable Illumination and Focus Controls

Equipped with a plano-concave mirror, the microscope uses either natural or artificial light. The 6-hole disc diaphragm lets students control light intensity, while coarse and fine focus knobs ensure sharp and clear imaging. Accessories, including spare bulbs and a dust cover, complete the user-friendly package.

FAQ's of Student Microscope:

Q: How does the stage movement and specimen positioning work on this microscope?

A: The microscope features a manual stage with spring-loaded mechanical slide clips, allowing you to securely place and adjust your specimen slides by hand for precise positioning during observation.

Q: What magnification options does this microscope offer, and how are they achieved?

A: It provides three magnification levels-100x, 200x, and 450x. These are achieved using achromatic objectives (10x, 45x) coupled with a wide-field 10x eyepiece, offering versatility for educational exploration of microscopic specimens.

Q: When is this microscope most suitable for use?

A: This model is ideal for regular use in school, college, and laboratory practical sessions where students perform practical and theoretical studies in biology, botany, zoology, or general science.

Q: Where can this microscope be stored safely when not in use?

A: For safe storage, the microscope should be covered with the provided dust cover and placed in a dry, secure location such as a laboratory cupboard or classroom storage cabinet, away from direct sunlight and humidity.

Q: What is the process for focusing and adjusting the microscope for clear viewing?

A: After placing the slide, use the coarse focus knob for initial adjustment and then fine-tune the image using the fine focus knob until sharpness is achieved. The adjustable inclined head aids in comfortable, precise viewing.

Q: How does the mirror-based illumination support slide observation?

A: The plano-concave mirror beneath the stage reflects either natural or artificial light onto your specimen. The 6-hole disc diaphragm allows you to adjust light intensity for optimal image clarity, even without an electric light source.

Q: What are the main benefits of using this particular student microscope model?

A: Key benefits include its robust, anti-rust construction, child-safe design to avoid pinching, stable base, comprehensive accessory set, and ease of use-making it well-suited for both new and experienced students engaged in practical microscopy.
